01 - Cover Sheet
02 - Motor And Drive Parts
03 - Frame Parts
04 - Powerscrew And Ram Parts
05 - Container Parts
06 - Panel And Control Parts
07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

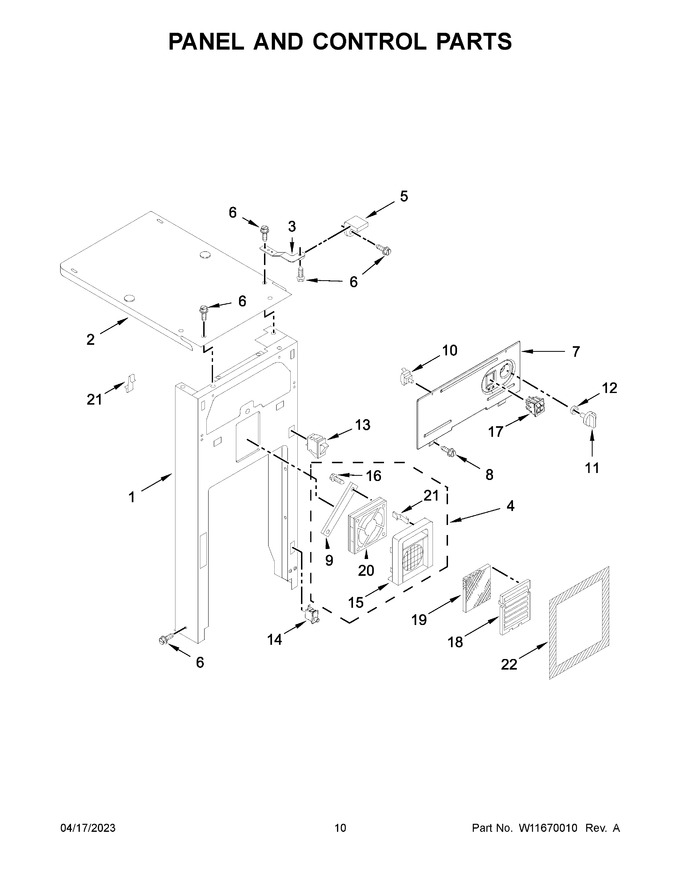

| 1 | W10242567 | Panel, Front Frame (black) |
|
$ 315.14 | |||||
| 2 | W11684543 | Cover, Top (Replaces: 608572) |
|
- | |||||
| 3 | W11729437 | Bracket, Retainer (Replaces: 9871993) |
|
Immediately | $ 22.03 | ||||
| 4 | 9871893 | Fan Mount Assembly |
|
$ 313.51 | |||||
| 5 | WP780239 | Bracket, Mounting (Replaces: 780239) |
|
$ 25.68 | |||||
| 6 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.36 | |||||
| 7 | W11251655 | Escutcheon |
|
- | |||||
| 8 | 246131 | Screw |
|
- | |||||
| 9 | 4152703 | Strap, Fan |
|
$ 67.79 | |||||
| 10 | WP9871971 | Switch, Rotary Start-run (Replaces: 9871971) |
|
Immediately | $ 167.98 | ||||
| 11 | WP9871920 | Knob, Rotary Switch (black) (Replaces: 9871920) |
|
$ 62.60 | |||||
| 12 | WP777383 | Nut (Replaces: 777383) |
|
$ 11.55 | |||||
| 13 | 9871829 | Switch, Drawer (black) |
|
$ 84.56 | |||||
| 14 | WPW10242556 | Switch, Pushbutton (Replaces: W10242556) |
|
$ 142.61 | |||||
| 15 | 9871893 | Compartment, Air Freshener (Replaces: 4151442) |
|
$ 313.51 | |||||
| 16 | WP3351614 | Screw (Replaces: 780034) |
|
Immediately | $ 6.57 | ||||
| 17 | W11032731 | Switch Assembly (black) (Replaces: 9871973) |
|
Immediately | $ 80.30 | ||||
| 18 | WP9871099 | Cover, Air Freshener (black) (Replaces: 9871099) |
|
$ 64.49 | |||||
| 19 | WP4151750 | Filter Element (Replaces: 4151750) |
|
$ 16.74 | |||||
| 20 | 9871893 | Fan, Filter (Replaces: 9871051) |
|
$ 313.51 | |||||
| 21 | 4151897 | Clip |
|
$ 6.66 | |||||
| 22 | NP | Cabinet (not Serviced) |
|
- |
