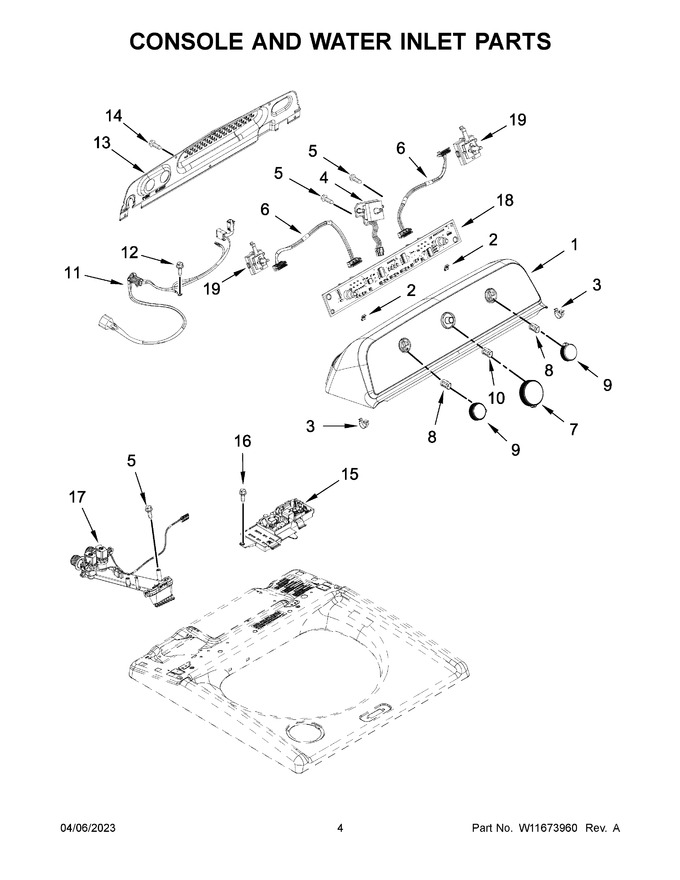

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11755512 | Console Assembly (Replaces: W11576952) |
|
Immediately | $ 187.19 | ||||
| 2 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W11675700 | Encoder, Pca (Replaces: W11609449) |
|
$ 287.01 | |||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 6 | W11736787 | Harness, Hmi (Replaces: W11506959) |
|
$ 19.49 | |||||
| 7 | W11675852 | Knob, Large (Replaces: W11328381) |
|
Immediately | $ 33.32 | ||||
| 8 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 9 | W11625514 | Knob, Small (Replaces: W11398762) |
|
Immediately | $ 33.18 | ||||
| 10 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 11 | W11513259 | Power Cord Assembly (Replaces: W11335102) |
|
Immediately | $ 38.10 | ||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W10611544 | Panel, Console Rear Cover |
|
$ 307.11 | |||||
| 14 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 15 | W11626074 | Control Unit Assembly, Machine And Motor (Replaces: W11491433) |
|
Immediately | $ 274.49 | ||||
| 16 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 17 | W11513255 | Water Inlet Assembly (complete) (Replaces: W11385821) |
|
Immediately | $ 89.22 | ||||
| 18 | W11675701 | Hmi (Replaces: W11612331) |
|
Immediately | $ 287.99 | ||||
| 19 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 169.49 |
