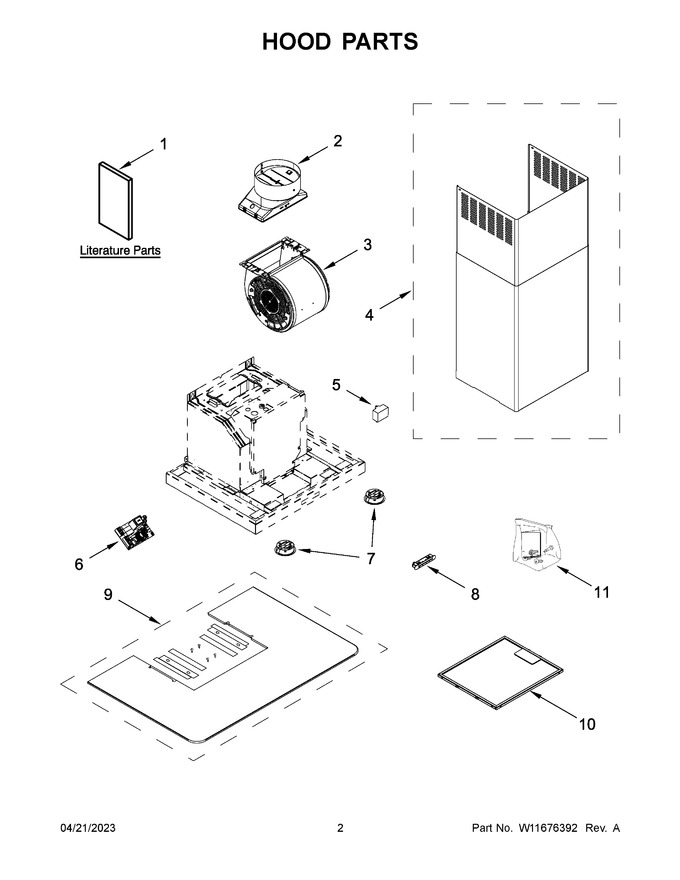

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11423742 | Owners Manual |
|
- | |||||
| 2 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 3 | WPW10291577 | Assembly, Fan (Replaces: W10291577) |
|
$ 485.51 | |||||
| 4 | W11590865 | Chimney, Upper And Lower (Replaces: W11328682) |
|
$ 350.33 | |||||
| 5 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 6 | W11613025 | Board, Power (Replaces: W11612969) |
|
$ 332.58 | |||||
| 7 | W11794237 | Light, Led (Replaces: W10862081) |
|
Immediately | $ 76.20 | ||||
| 8 | W11455937 | Control, Hood |
|
- | |||||
| 9 | W11677650 | Glass Assembly (30" Model Only) (Replaces: W11676374) |
|
- | |||||
| 10 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 11 | W11455943 | Hardware, Installation |
|
- | |||||
| 9A | W11677651 | Glass Assembly (36" Model Only) (Replaces: W11676378) |
|
- |
