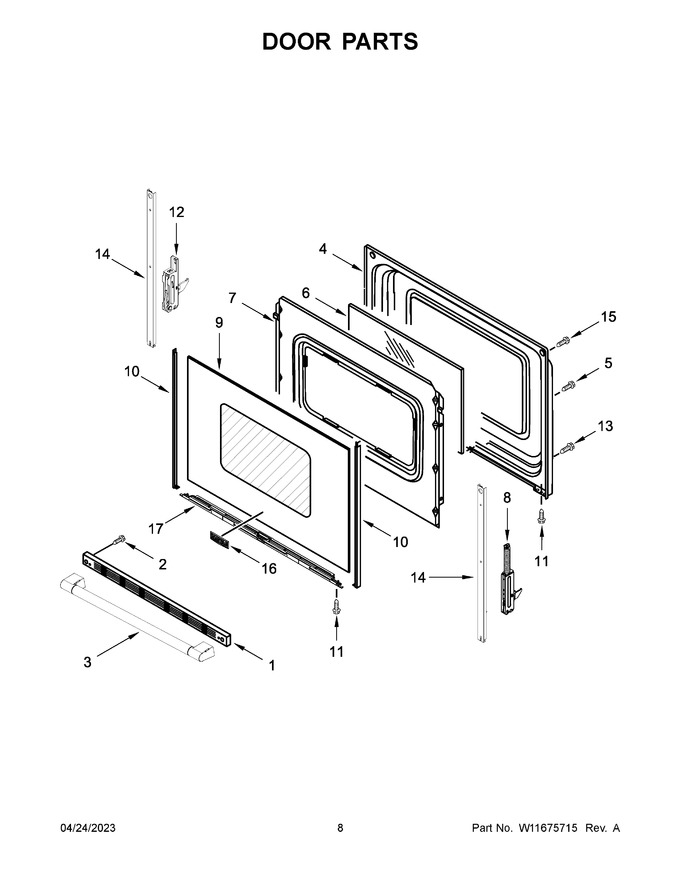

| 1 | W11096161 | Trim, Vent (stainless) (Replaces: W11047800) |
|
Immediately | $ 152.40 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 3 | W11648982 | Handle, Door (stainless) (Replaces: W11495825) |
|
$ 197.87 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 154.51 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761505) |
|
$ 169.46 | |||||
| 8 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 60.30 | ||||
| 9 | W11679226 | Glass Assembly, Outer Door (stainless) (Replaces: W11620248) |
|
- | |||||
| 10 | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 51.80 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 66.85 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 16 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 38.16 | ||||
| 17 | W11440159 | Trim, Bottom Door |
|
Immediately | $ 56.47 | ||||
| 10A | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 68.96 |
