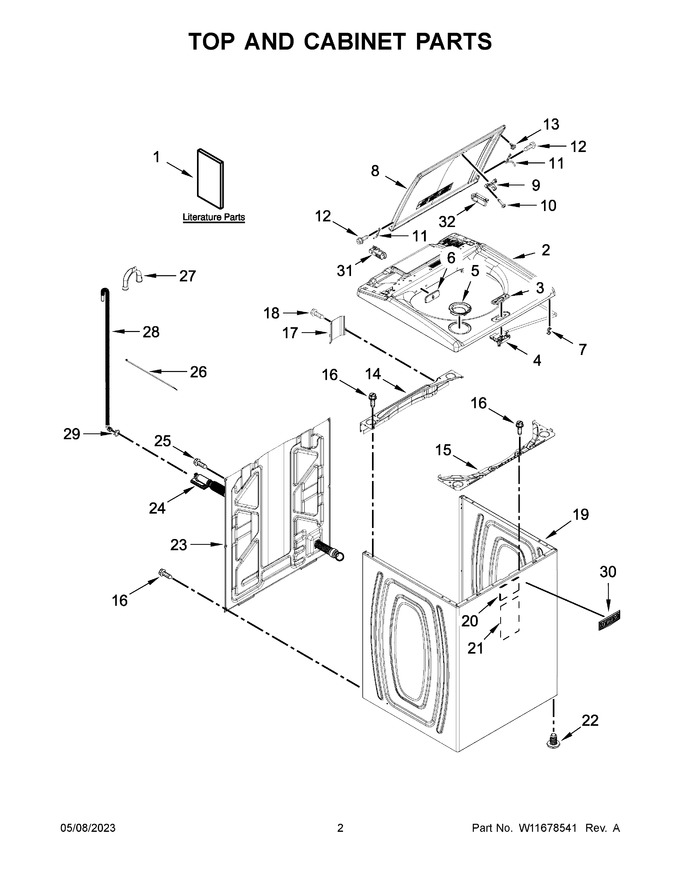

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11354658 | Owners Manual |
|
- | |||||
| 2 | W11513251 | Top (white) (Replaces: W11391547) |
|
$ 350.16 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 27.24 | ||||
| 4 | W11670519 | Latch, Lid Lock Assembly (Replaces: W11368616) |
|
Immediately | $ 68.06 | ||||
| 5 | W11234069 | Bezel, Bleach Dispenser (white) (Replaces: W11171193) |
|
$ 93.82 | |||||
| 6 | W11396263 | Bezel, Faucet |
|
$ 26.99 | |||||
| 7 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 8 | W11625518 | Lid (white) (Replaces: W11428825) |
|
$ 352.58 | |||||
| 9 | W11513250 | Strike, Lid Lock (white) (Replaces: W11391550) |
|
Immediately | $ 11.65 | ||||
| 10 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 11 | WP91770 | Hinge, Lid (left) (Replaces: 91770) |
|
$ 25.94 | |||||
| 12 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 6.80 | ||||
| 13 | 8572266 | Bumper, Door |
|
Immediately | $ 10.56 | ||||
| 14 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 15 | W11381327 | Channel, Top Front |
|
Immediately | $ 70.65 | ||||
| 16 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 17 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 18 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 19 | W10676680 | Cabinet (white) |
|
$ 366.17 | |||||
| 20 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 21 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 20.95 | |||||
| 22 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 12.82 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 294.95 | ||||
| 24 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 32.20 | ||||
| 25 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 26 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 28 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 28.86 | ||||
| 29 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 30 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 31 | W11654274 | Hinge, Spacer Left (Replaces: W11434928) |
|
$ 16.30 | |||||
| 32 | W11654272 | Hinge, Spacer Right (Replaces: W11434930) |
|
$ 16.30 | |||||
| 11A | W11513247 | Hinge, Lid (right) (Replaces: W11429864) |
|
$ 9.44 | |||||
| 1A | W11614567 | Energy Guide |
|
- | |||||
| 1B | W11436568 | Quick Start Guide |
|
- | |||||
| 1C | W11467155 | Tech Sheet |
|
- |
