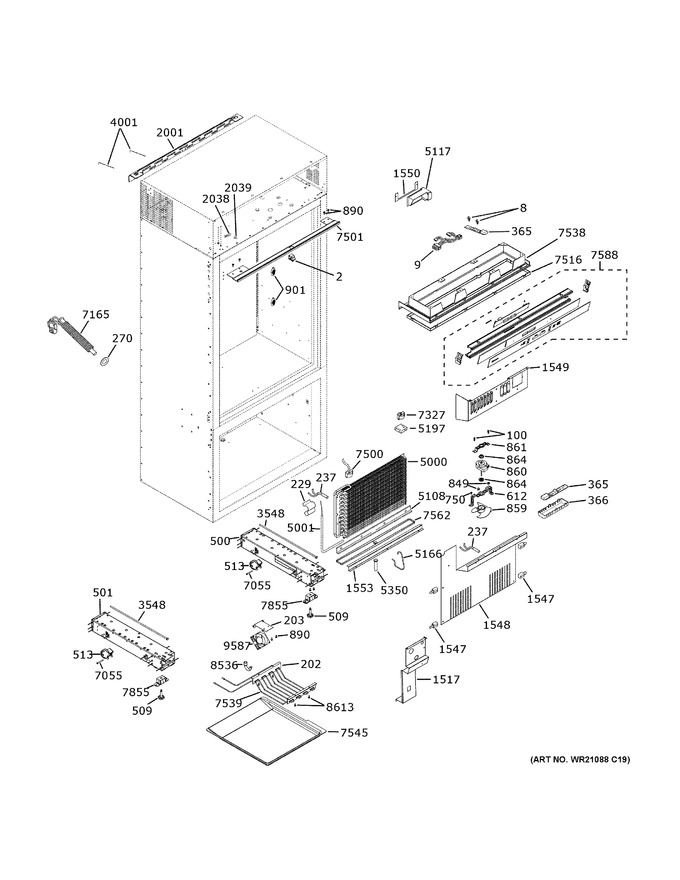

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WG03F09086 | Switch Light (Replaces: WR23X10725) |
|
Immediately | $ 10.01 | ||||
| 8 | WR02X23950 | Standoff Led Board |
|
- | |||||
| 9 | WR55X23951 | Harness Led Bm Fd |
|
- | |||||
| 100 | WR01X23106 | Screw, 10-24 X 1/2 Type |
|
- | |||||
| 202 | WR02X12572 | Bracket Cond Support Bm |
|
- | |||||
| 203 | WR02X12566 | Bracket Fan Mtg |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
Immediately | $ 3.75 | ||||
| 237 | WR55X10026 | Sensor Temp Fz |
|
- | |||||
| 270 | WR02X13037 | Grommet Water Fill |
|
- | |||||
| 365 | WR01F00268 | Board Led Light Asm (Replaces: WR55X11088) |
|
Immediately | $ 26.17 | ||||
| 366 | WR02X23939 | Lens Led Cover |
|
- | |||||
| 500 | WR13X32590 | Rh Base Channel |
|
- | |||||
| 501 | WR13X32591 | Lh Base Channel |
|
- | |||||
| 509 | WR02X10479 | Leveling Leg |
|
- | |||||
| 513 | WR2X8377 | Wheel Asm. |
|
- | |||||
| 612 | WR02X10653 | Bracket Orifice Fan |
|
- | |||||
| 750 | WR1X1826 | #8-18 Type Ab X 3/8 Ph P |
|
- | |||||
| 849 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 5.72 | ||||
| 859 | WR60X26667 | Fan Blade Asm |
|
- | |||||
| 860 | WR01F01622 | Motor Evap Dc (Replaces: WR60X10185) |
|
Immediately | $ 62.96 | ||||
| 861 | WR02X11622 | Bracket Evap Fan Btm |
|
- | |||||
| 864 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 6.52 | ||||
| 890 | WG04A01239 | #10x1\2 Ph Sms (Replaces: WD2X295) |
|
$ 3.57 | |||||
| 901 | WR71X10325 | Ff Air Diffuser |
|
- | |||||
| 1517 | WR02X13607 | Cover Fill Tube |
|
- | |||||
| 1547 | WR02X37905 | Twist Support |
|
- | |||||
| 1548 | WR74X23406 | Cover Evap |
|
- | |||||
| 1549 | WR17X29397 | Evaporator Fan Cover |
|
- | |||||
| 1550 | WR17X11009 | Bracket Damper Mtg |
|
- | |||||
| 1553 | WR17X23352 | Catch Trough Evap |
|
- | |||||
| 2001 | WR02X42385 | Wall Mounting Bracket |
|
- | |||||
| 2038 | WR02X13216 | Hairpin Cotter |
|
- | |||||
| 2039 | WR01X10906 | Washer 3/8 |
|
- | |||||
| 3548 | WG03F00037 | Base Shaft (Replaces: WR01X10256) |
|
$ 12.86 | |||||
| 4001 | WR74X10326 | Rod |
|
- | |||||
| 5000 | WR87X20947 | Evaporator Bm Asm |
|
- | |||||
| 5001 | WR51X10125 | Heater Defrost |
|
- | |||||
| 5108 | WR17X10349 | Drain Baffle |
|
- | |||||
| 5117 | WR60X27396 | Damper Asm |
|
- | |||||
| 5166 | WR01X10045 | Wire Ret Evap Heater |
|
- | |||||
| 5197 | WR02X10145 | Baffle Evap Lh |
|
- | |||||
| 5350 | WR17X26689 | Tube Drain |
|
- | |||||
| 7055 | WR02X10478 | Axle Wheel |
|
- | |||||
| 7165 | WR09X30090 | Ice Maker Fill Tube And Heater |
|
- | |||||
| 7327 | WR50X10105 | Tod Evap |
|
$ 24.45 | |||||
| 7500 | WR50X10105 | Tod Evap |
|
$ 24.45 | |||||
| 7501 | WR17X11557 | Switch Plate Rh |
|
- | |||||
| 7516 | WR17X23973 | Shield Light Snap In |
|
- | |||||
| 7538 | WR17X11015 | Trim Lighting Ff |
|
- | |||||
| 7539 | WR84X23357 | Cond Bottom Bm |
|
- | |||||
| 7545 | WR17X11016 | Drain Pan |
|
- | |||||
| 7562 | WR17X11098 | Evaporator Trough |
|
- | |||||
| 7588 | WR55X32596 | Temperature Control Board And Housing |
|
- | |||||
| 7855 | WR02X11210 | Front Roller Asm |
|
- | |||||
| 8536 | WR17X10675 | Drain Trap Aux Cond |
|
- | |||||
| 8613 | WR1X2129 | Screw, #8-15 X 1/2 Cr Pa |
|
- | |||||
| 9587 | WR60X23405 | Drain Fan Asm Sd |
|
- |
