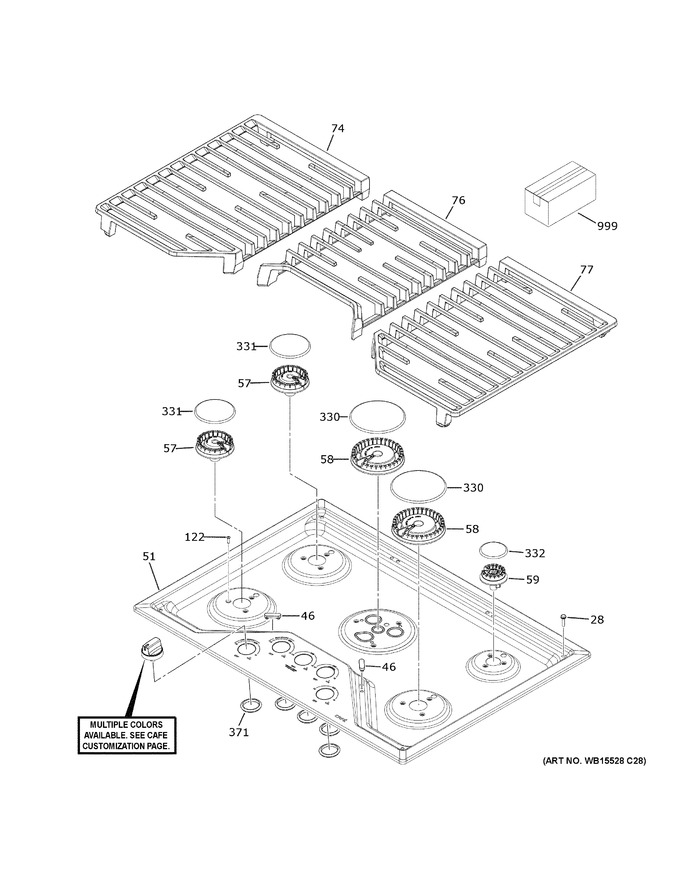

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 28 | WB02X24790 | Bumper |
|
- | |||||
| 46 | WB02X30761 | Bridge Bumper |
|
- | |||||
| 51 | WB62X33187 | Stainless Steel Caf Maintop Asm 36" |
|
- | |||||
| 57 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 58 | WB16X24722 | Burner, Xl V2 |
|
- | |||||
| 59 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 74 | WB31X29388 | Grate Lh Bk |
|
- | |||||
| 76 | WB31X29389 | Grate Center Bk |
|
- | |||||
| 77 | WB31X29390 | Grate Rh Bk |
|
- | |||||
| 122 | WB01X30054 | Screw 6-32 Ovt15 1/2 S |
|
- | |||||
| 330 | WS01F02544 | Cap Burner Xl (Replaces: WB28K10222) |
|
Immediately | $ 16.59 | ||||
| 331 | WS01F02536 | Asm Burner Cap (9500) (Replaces: WB29K10023) |
|
Immediately | $ 15.72 | ||||
| 332 | WB16X28654 | Asm. Cap, Burner Small V2 |
|
$ 28.45 | |||||
| 371 | WB04T10042 | Seal Cntl Bk |
|
- | |||||
| 999 | 49-2001106 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-2001099 | Pm Install Instructions |
|
- | |||||
| 999 | 31-2001110 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 31-2001090 | Pm Install Instructions |
|
- |
