Chassis Parts


Control Panel Parts

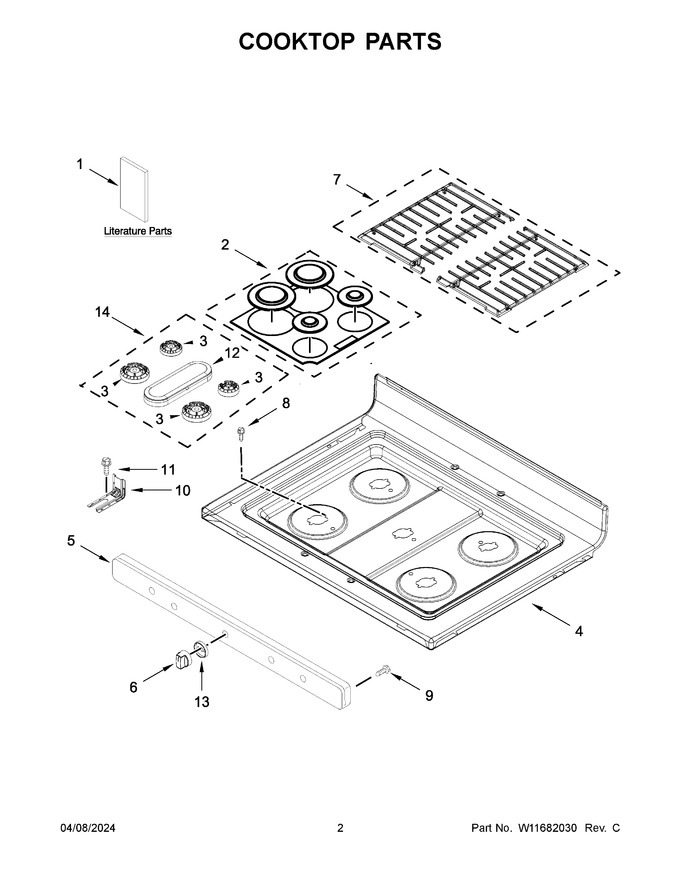

Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11651766		Quick Start Guide		Appelez-nous	-
2	W11605759		Burner Cap Kit (black (set Of 4))   (Replaces: W11498499)			Immediately	$ 75.35
3	WPW10515455		Assembly, Burner (17.5k) (left Front And Right Front)   (Replaces: W10515455)				$ 112.47
4	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 435.20
5	W11028196		Panel, Manifold (stainless)   (Replaces: W10861559)		Appelez-nous	-
6	W11686847		Knob, Control (black)   (Replaces: W11641208)				$ 67.71
7	W11101497		Grate Kit (black)   (Replaces: W10911970)				$ 364.92
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11435660		Spreader, Flame   (Replaces: W11367086)			Immediately	$ 98.56
13	W11375481		Bezel (stainless)   (Replaces: W11042485)				$ 59.29
14	W11575584		Burner Kit   (Replaces: W11368533)				$ 185.10
1A	W11450808		Owners Manual		Appelez-nous	-
1B	W11642952		Tech Sheet		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear And Center)   (Replaces: W10515454)				$ 115.74
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 99.29
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11645866		Harness, Bake And Broil   (Replaces: W11450461)				$ 38.49
NI	W11457167		Harness, Main		Appelez-nous	-
NI	W11701336		Harness, Igniter (includes Switches)   (Replaces: W11537754)		Appelez-nous	-
