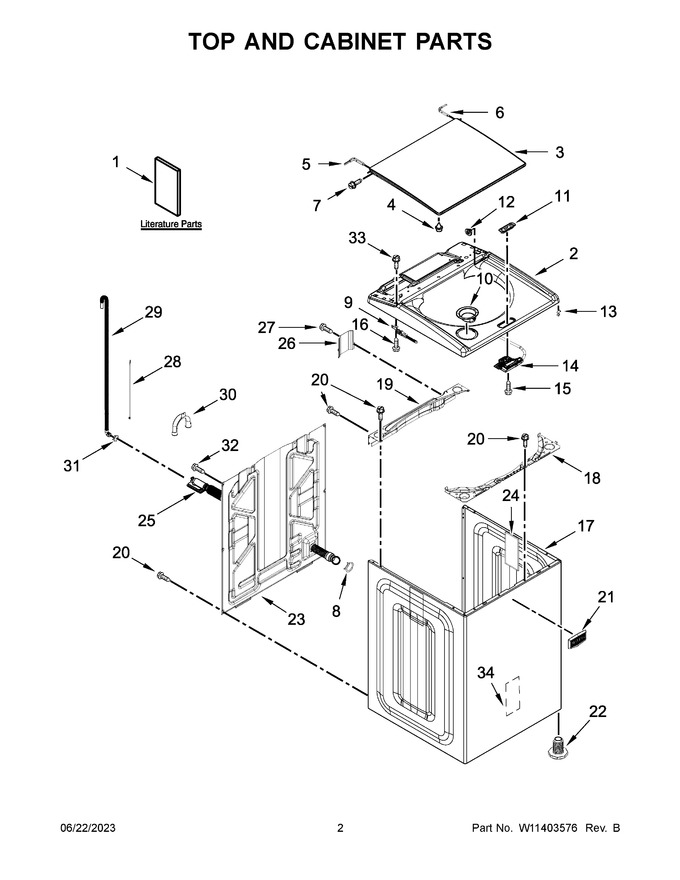

02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11128376 | Instructions, Installation |
|
- | |||||
| 2 | W10649674 | Top (chrome Shadow) |
|
- | |||||
| 3 | W11256781 | Assembly, Lid (glass) (chrome Shadow) (Replaces: W11082611) |
|
Immediately | $ 389.40 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 20.97 | ||||
| 5 | WP8563965 | Hinge, Wire (left) (Replaces: 8563965) |
|
Immediately | $ 27.82 | ||||
| 6 | WP8572974 | Hinge, Wire (right) (Replaces: 8572974) |
|
Immediately | $ 27.45 | ||||
| 7 | W11404293 | Screw (Replaces: W10339706) |
|
Immediately | $ 13.27 | ||||
| 8 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 7.93 | ||||
| 9 | W11401116 | Hinge, Lid (left) (Replaces: W10594153) |
|
Immediately | $ 145.22 | ||||
| 10 | W11234070 | Bezel, Bleach Dispenser (chrome Shadow) (Replaces: W11171187) |
|
$ 93.82 | |||||
| 11 | W11237158 | Bezel, Lid Lock (chrome Shadow) (Replaces: W11187059) |
|
Immediately | $ 27.59 | ||||
| 12 | W11579387 | Spacer, Lid Hinge (chrome Shadow) (Replaces: W10708966) |
|
$ 15.68 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | W10861642 | Assembly, Lid Lock (chrome Shadow) (Replaces: W10787880) |
|
Immediately | $ 165.59 | ||||
| 15 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 16 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 17 | W10677266 | Cabinet (chrome Shadow) |
|
$ 465.75 | |||||
| 18 | W11661767 | Channel, Top Front (chrome Shadow) (Replaces: W10724132) |
|
- | |||||
| 19 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 21 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 22 | WPW10687506 | Foot Assembly, Leveling (Replaces: W10687506) |
|
Immediately | $ 23.46 | ||||
| 23 | W11417171 | Panel, Rear (Replaces: W10612644) |
|
$ 249.90 | |||||
| 24 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 25 | W11246418 | Hose, Internal Drain (Replaces: W10786890) |
|
$ 51.99 | |||||
| 26 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 28 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 28.86 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 32 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 33 | WP313808 | Screw (Replaces: 311932) |
|
$ 7.47 | |||||
| 34 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 21.04 | ||||
| 1A | W11040359 | Owners Manual |
|
- | |||||
| 1B | W10607408 | Tech Sheet |
|
- | |||||
| 1C | W11360579 | Energy Guide |
|
- | |||||
| 1D | W10740599 | Quick Start Guide |
|
- | |||||
| 9A | W11399226 | Hinge, Lid (right) (Replaces: W10594154) |
|
Immediately | $ 108.67 |
