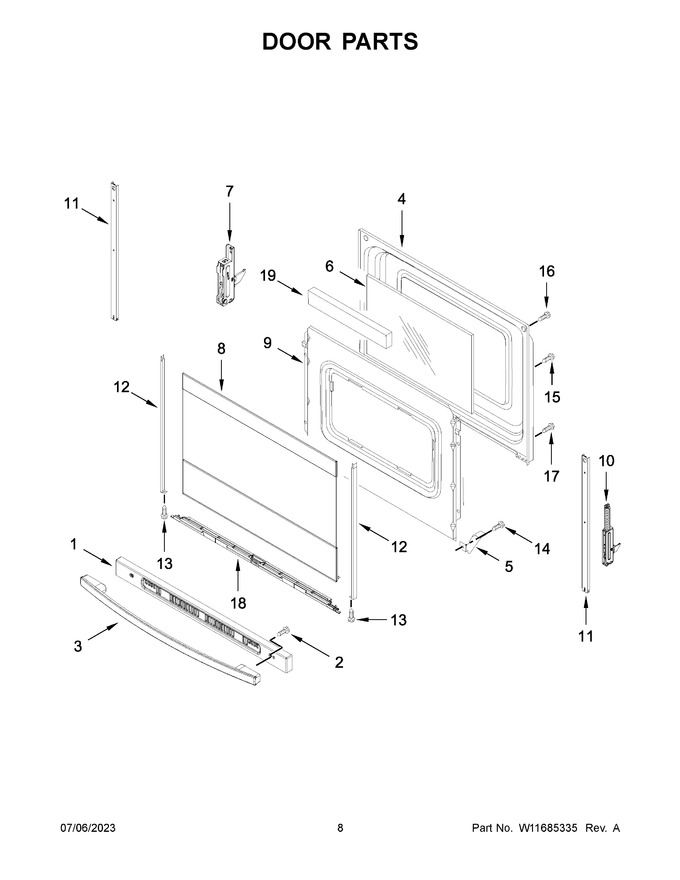

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 157.83
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 7.33
3	WPW10323589		Handle, Door (black)   (Replaces: W10323589)			Immediately	$ 252.10
4	9761342		Liner, Door		Appelez-nous	-
5	W10137382		Clip, Panel			Immediately	$ 43.58
6	W11399628		Glass, Inner   (Replaces: W11367326)				$ 154.51
7	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
8	W11686860		Glass Assembly, Outer Door (black)   (Replaces: W11608533)		Appelez-nous	-
9	W11699790		Retainer, Insulation   (Replaces: 9761504)		Appelez-nous	-
10	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 90.51
11	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
12	W10761018		Trim, Side (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
17	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
18	W11440159		Trim, Lower Door (trim, Bottom Door)			Immediately	$ 56.47
19	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
12A	W10761014		Trim, Side (black (right))   (Replaces: W10746435)			Immediately	$ 65.66

    View Diagram in Separate Window       Print Part List
