01 - Cover Sheet
02 - Top And Cabinet Parts

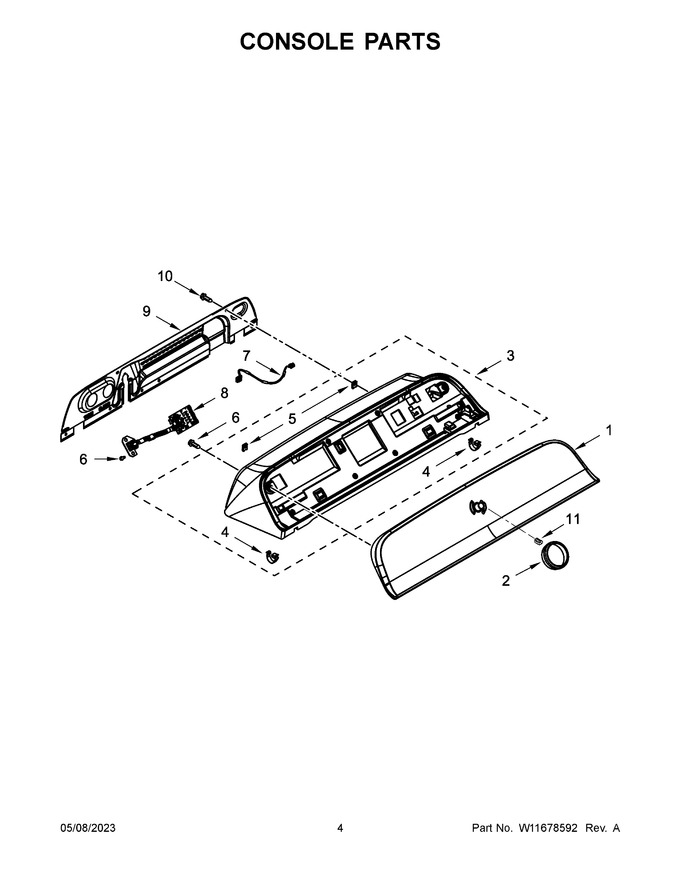

03 - Console Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11680403 | Assembly, Fascia (Replaces: W11656591) |
|
$ 299.82 | |||||
| 2 | W11662669 | Assembly, Control Knob (knob Assembly) (Replaces: W11430050) |
|
Immediately | $ 32.28 | ||||
| 3 | W11636629 | Assembly, Console (grey) (Replaces: W11564428) |
|
Immediately | $ 199.58 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 5 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 6 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 7 | W11662667 | Harness, Ui (Replaces: W11414312) |
|
$ 13.26 | |||||
| 8 | W11627516 | Encoder Assembly (Replaces: W11557402) |
|
Immediately | $ 289.53 | ||||
| 9 | W11129559 | Panel, Console Rear |
|
$ 263.36 | |||||
| 10 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 11 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 |
