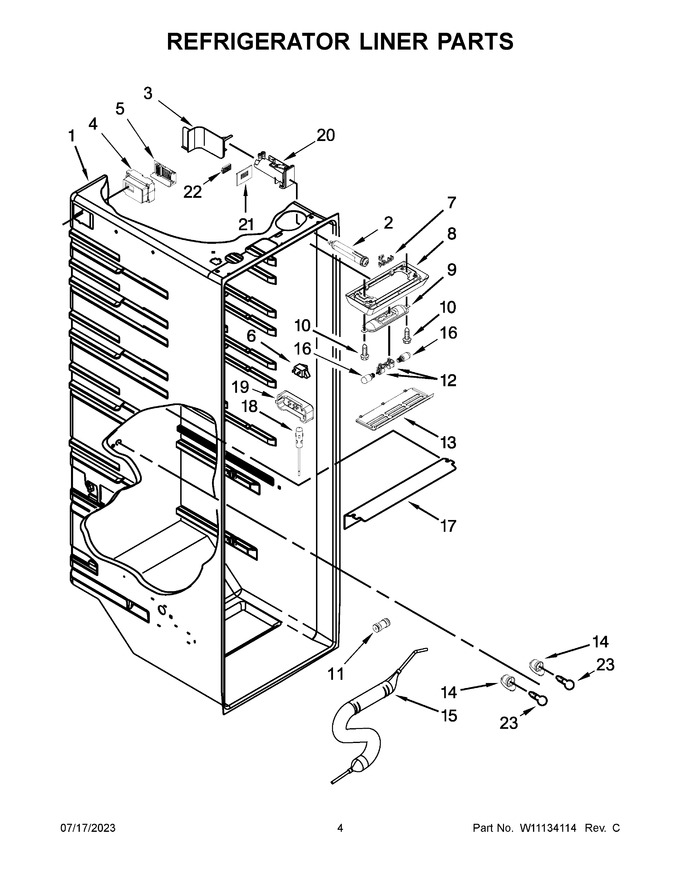

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W10569758 | Filter, Water |
|
$ 0.03 | |||||
| 3 | W11501035 | Cover, Water Filter (Replaces: W10300482) |
|
$ 14.13 | |||||
| 4 | W11236851 | Assembly, Air Diffuser (Replaces: W11175955) |
|
Immediately | $ 127.56 | ||||
| 5 | WPW10457601 | Cover, Air Diffuser (Replaces: W10457601) |
|
$ 141.49 | |||||
| 6 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 35.18 | ||||
| 7 | W10253300 | Assembly, Top Light Wire |
|
- | |||||
| 8 | W10280178 | Trim, Light |
|
- | |||||
| 9 | 2223680 | Shield, Heat |
|
$ 84.17 | |||||
| 10 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 8.15 | |||||
| 11 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 31.89 | ||||
| 12 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 13 | W10280420 | Lens, Top Light |
|
$ 96.43 | |||||
| 14 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 15 | W11802492 | Reservoir (Replaces: W10366790) |
|
$ 80.02 | |||||
| 16 | W11518235 | Lamp, Led (Replaces: W10574850) |
|
Immediately | $ 26.36 | ||||
| 17 | WPW10269099 | Lens, Light (Replaces: W10269099) |
|
$ 115.21 | |||||
| 18 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 30.24 | ||||
| 19 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 79.54 | ||||
| 20 | WPW10394053 | Housing, Water Filter (Replaces: W10394053) |
|
Immediately | $ 141.85 | ||||
| 21 | WPW10457603 | Cover, Air Filter (Replaces: W10457603) |
|
$ 73.93 | |||||
| 22 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 23 | W11338583 | Lamp, Led (Replaces: W10805744) |
|
Immediately | $ 96.49 |
