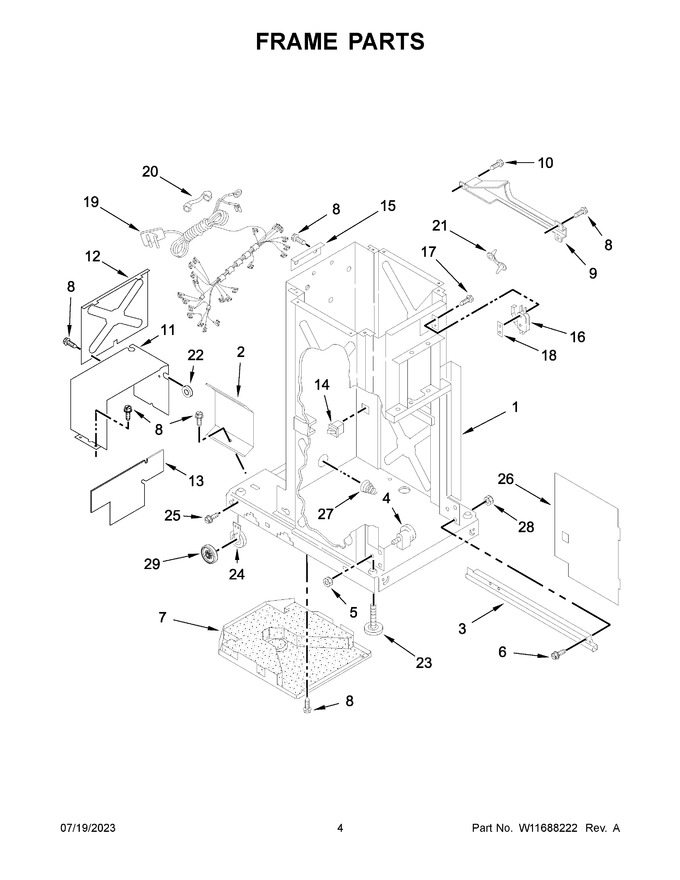

03 - Frame Parts


04 - Powerscrew And Ram Parts


05 - Container Parts


06 - Panel And Control Parts


07 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	9870867		Shield, Slide Track		Appelez-nous	-
3	W11722978		Slide, Track (right Hand)   (Replaces: 9870976)				$ 127.20
4	882688		Bearing, Roller   (Replaces: 4153788)				$ 19.07
5	WP776356		Locknut   (Replaces: 776356)				$ 7.68
6	WP486754		Screw   (Replaces: 777458)				$ 7.21
7	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 284.95
8	WP489478		Screw   (Replaces: W10001260)				$ 7.36
9	4149659		Shield, Harness		Appelez-nous	-
10	WPW10139210		Screw   (Replaces: 4152204)				$ 7.23
11	780434		Cover, Motor		Appelez-nous	-
12	608009		Plate, Motor Cover				$ 39.79
13	W11688705		Insulation   (Replaces: 9872154)		Appelez-nous	-
14	W11243179		Switch, Drawer Safety   (Replaces: W10804315)				$ 67.27
15	775668		Angle, Frame Plate		Appelez-nous	-
16	WP777811		Switch, Top Limit And Directional   (Replaces: 777811)			Immediately	$ 104.96
17	777849		Screw				$ 6.62
18	777850		Plate, Nut				$ 69.42
19	W10830603		Cord, Power				$ 224.82
20	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
21	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
22	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
23	WPW10001130		Foot   (Replaces: 775526)			Immediately	$ 7.02
24	W11023674		Wheel, Leveler   (Replaces: 9870585)				$ 48.65
25	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 6.57
26	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 91.73
27	WP777180		Spring, Container   (Replaces: 777180)				$ 88.14
28	W11759042		Nut, Hex   (Replaces: 3400938)		Appelez-nous	-
29	W11672206		Wheel   (Replaces: 780120)		Appelez-nous	-
3A	WP9870975		Slide, Track (left Hand)   (Replaces: 9870975)				$ 101.43
