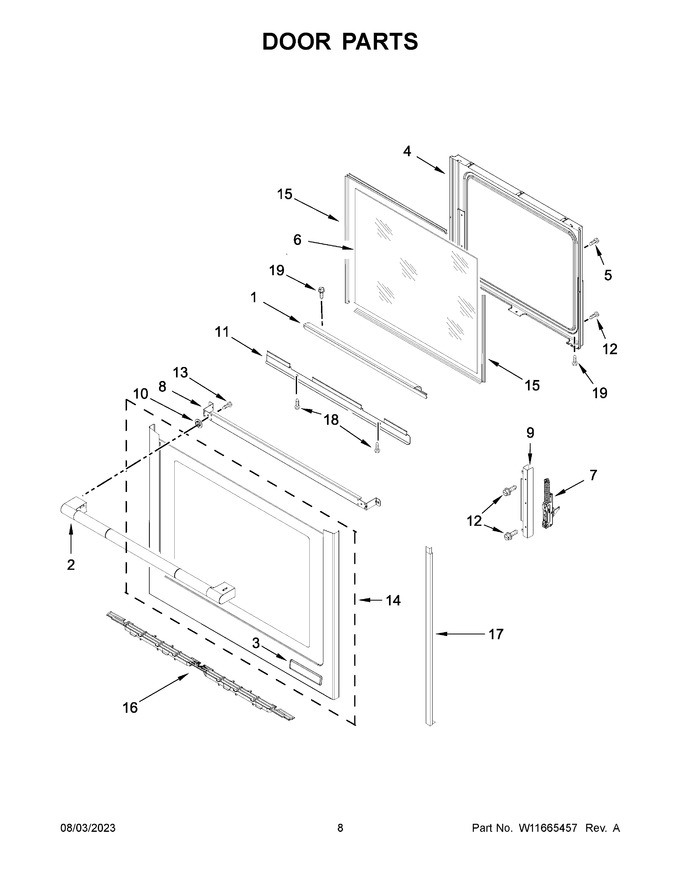

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025120		Liner, Door Scoop (stainless)   (Replaces: W10551024)				$ 110.71
2	W11647008		Assembly, Door Handle (stainless)   (Replaces: W11600908)			Immediately	$ 352.89
3	W11700312		Badge (stainless)   (Replaces: W11238658)			Immediately	$ 104.89
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 301.54
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	W11339500		Glass, Inner   (Replaces: W11223202)				$ 154.05
7	W11647009		Hinge, Slow Close   (Replaces: W11592970)			Immediately	$ 74.47
8	W10541911		Bracket, Glass Upper Handle			Immediately	$ 35.93
9	W10541883		Hinge, Support Rail				$ 40.41
10	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
11	W10813140		Rail, Horizontal Support			Immediately	$ 159.49
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
13	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.90
14	W11647013		Assembly, Outer Door (stainless)   (Replaces: W11618950)				$ 395.96
15	W11673273		Glass Spacer   (Replaces: W11379948)			Immediately	$ 27.94
16	W11440161		Bottom, Door Cover				$ 56.51
17	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 68.57
18	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
19	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
