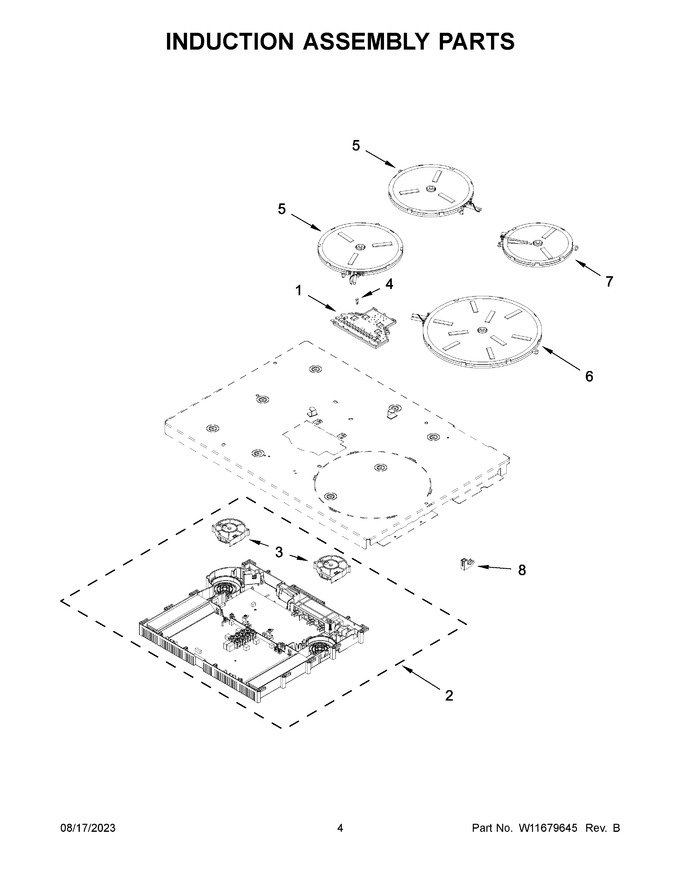

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11689156		User, Interface   (Replaces: W11683059)			Immediately	$ 478.74
2	W11689155		Assembly, Induction Module   (Replaces: W11683057)			Immediately	$ 1,421.77
3	W11687652		Fan, Cooling   (Replaces: W11683058)				$ 340.28
4	W11689156		Locking Pin, User Interface   (Replaces: W11683061)			Immediately	$ 478.74
5	W11689152		Element, Induction (left Front And Left Rear)   (Replaces: W11683055)			Immediately	$ 276.33
6	W11689153		Element, Induction (right Front)   (Replaces: W11683054)			Immediately	$ 282.00
7	W11689154		Element, Induction (right Rear)   (Replaces: W11683056)				$ 264.91
8	W11689160		Strain Relief, Cable   (Replaces: W11683063)		Appelez-nous	-
NI	W11689158		Harness, Ui To Module   (Replaces: W11683062)				$ 339.10
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11689159		Harness, Induction Cooktop Pan, Induction (upper)   (Replaces: W11615923)				$ 74.84
