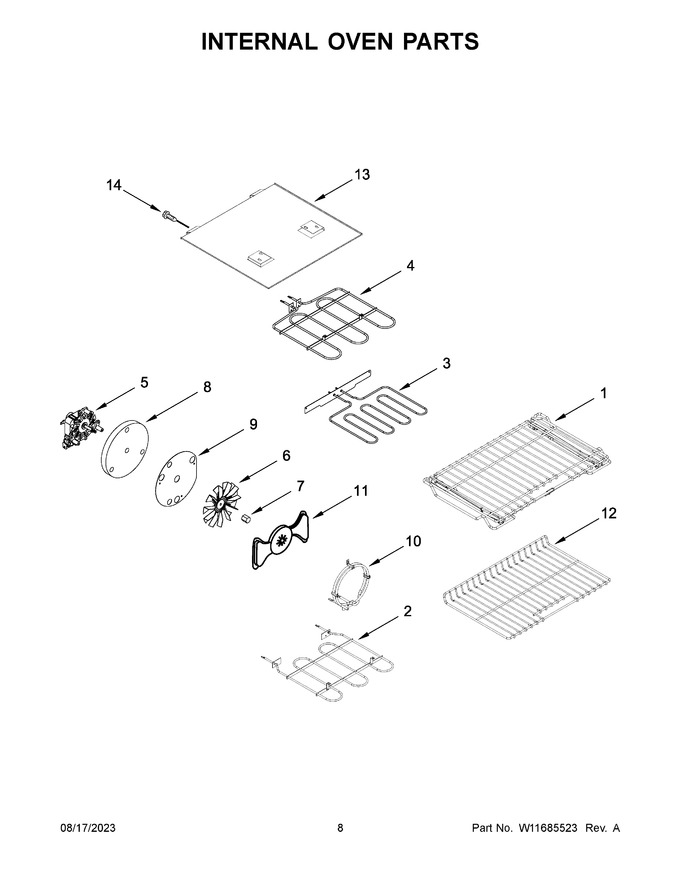

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10570870 | Rack, Oven (telescoping) (Replaces: W10570870) |
|
$ 330.95 | |||||
| 2 | WPW10611615 | Element, Broil (lower) (Replaces: W10249979) |
|
Immediately | $ 184.46 | ||||
| 3 | W11662148 | Bake Element (upper & Lower) (Replaces: W11095935) |
|
Immediately | $ 110.69 | ||||
| 4 | W10317476 | Element, Broil (upper) |
|
$ 184.46 | |||||
| 5 | W11235883 | Motor, Convection (Replaces: W11190725) |
|
$ 221.02 | |||||
| 6 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 7 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.83 | |||||
| 8 | W10274268 | Insulation, Convection Motor |
|
$ 74.41 | |||||
| 9 | W10339476 | Plate, Insulation |
|
$ 72.63 | |||||
| 10 | W10271639 | Element, Convection (240vac) |
|
$ 267.16 | |||||
| 11 | 8303962BU | Cover, Fan |
|
$ 318.63 | |||||
| 12 | W11550107 | Rack, Oven (Replaces: W10570887) |
|
$ 105.40 | |||||
| 13 | W10319762 | Shield, Broil |
|
$ 127.45 | |||||
| 14 | 7101P43460 | Screw |
|
- |
