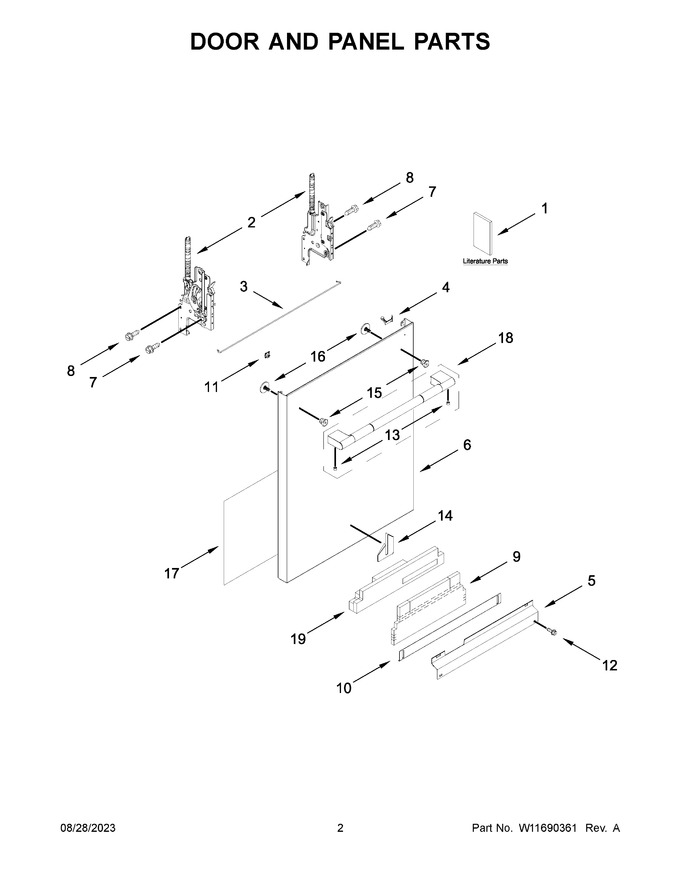

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11323304 | Owners Manual |
|
- | |||||
| 2 | W11766666 | Arm, Hinge (left Hand) (Replaces: W10920232) |
|
Immediately | $ 53.24 | ||||
| 3 | W11377160 | Cross Brace, Door |
|
$ 30.02 | |||||
| 4 | W11102920 | Light Pipe |
|
$ 61.35 | |||||
| 5 | W11545318 | Access Panel (black) (Replaces: W11108979) |
|
Immediately | $ 25.11 | ||||
| 6 | W11505430 | Panel, Front (includes 4,11 & 14) (stainless) (Replaces: W11465869) |
|
$ 379.49 | |||||
| 7 | W11676450 | Screw (Replaces: 3400000) |
|
$ 13.28 | |||||
| 8 | WPW10309090 | Screw (Replaces: W11364953) |
|
Immediately | $ 69.17 | ||||
| 9 | W11573704 | Insulation, Single Layer (Replaces: W11038694) |
|
Immediately | $ 26.98 | ||||
| 10 | W11579528 | Toe Panel (black) (Replaces: W11467733) |
|
Immediately | $ 29.61 | ||||
| 11 | W10692757 | Barrel Nut, Front Panel |
|
$ 14.41 | |||||
| 12 | W11551775 | Screw, Black (Replaces: W11438978) |
|
Immediately | $ 15.33 | ||||
| 13 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 6.80 | ||||
| 14 | W11320231 | Nameplate (stainless) (Replaces: W11238657) |
|
$ 99.70 | |||||
| 15 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 7.98 | ||||
| 16 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 17 | W11778318 | Insulation, Front Panel (Replaces: W10919859) |
|
$ 21.47 | |||||
| 18 | W11320226 | Handle (stainless) (Replaces: W11213316) |
|
Immediately | $ 367.25 | ||||
| 19 | W11573700 | Insulation, Multi-layer (Replaces: W10919858) |
|
Immediately | $ 40.40 | ||||
| 1A | W11366144 | Tech Sheet |
|
- | |||||
| 1B | W11655300 | Energy Guide |
|
- | |||||
| 2A | W11766665 | Arm, Hinge (right Hand) (Replaces: W10920230) |
|
Immediately | $ 53.24 |
