01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

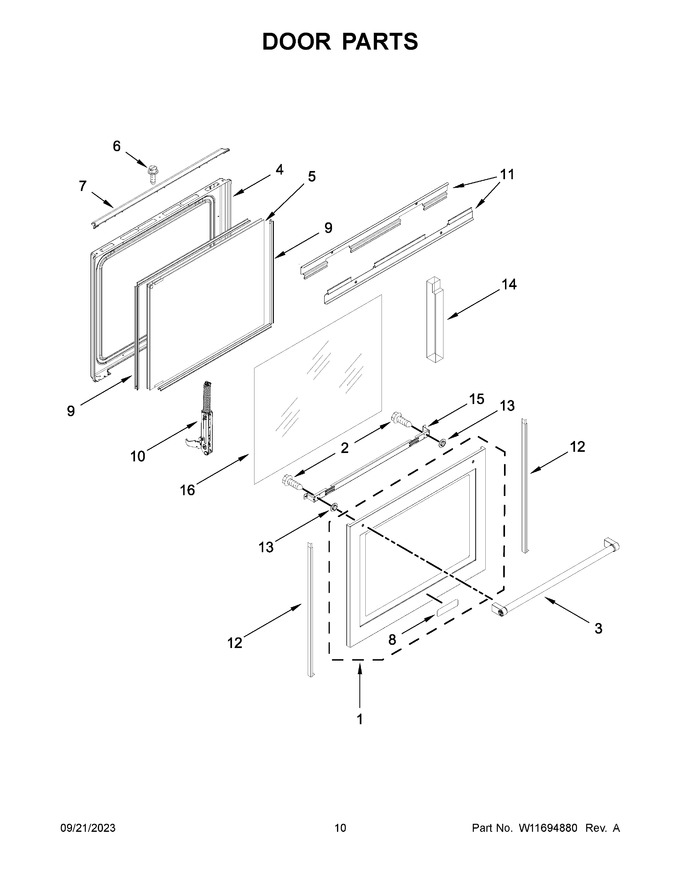

| 1 | W10906445 | Assembly, Outer Door (stainless) (Replaces: W10830225) |
|
$ 461.96 | |||||
| 2 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 | ||||
| 3 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 213.73 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 7 | W10675397 | Scoop, Door |
|
$ 127.57 | |||||
| 8 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 9 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 27.94 | ||||
| 10 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 13 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 14 | W11025151 | Insulation, Door (Replaces: W10766562) |
|
$ 198.50 | |||||
| 15 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 16 | W11705267 | Glass, Outer Door (stainless) (Replaces: W10693388) |
|
$ 210.28 |
