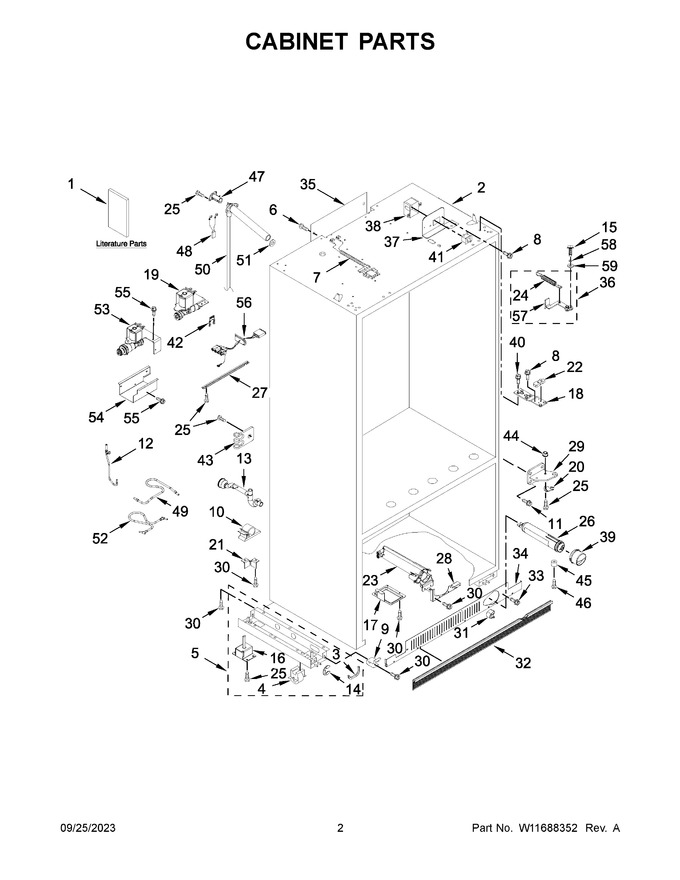

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11511883 | Use And Care Guide |
|
- | |||||
| 2 | ARIBD05C36FE9C41F5CCC5AA149AF8AA604 | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2307584 | Grommet, Crossover Tube |
|
$ 21.06 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 40.81 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 343.65 | |||||
| 6 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 6.80 | |||||
| 7 | W10745694 | Assembly, Top Switch Jumper Wire |
|
$ 113.04 | |||||
| 8 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 10.20 | |||||
| 9 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 38.93 | |||||
| 10 | W10663352 | Clip |
|
$ 19.72 | |||||
| 11 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 12 | W11690636 | Line, Water (Replaces: W10577944) |
|
$ 117.49 | |||||
| 13 | W11291510 | Assembly, Drain Tube |
|
$ 69.27 | |||||
| 14 | 2006841 | Ring, Retainer |
|
$ 83.39 | |||||
| 15 | W11354227 | Screw (Replaces: W10761279) |
|
$ 13.29 | |||||
| 16 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 180.06 | ||||
| 17 | 2318189 | Tray, Filter Drip |
|
$ 133.86 | |||||
| 18 | W11218690 | Hinge, Door (top) (Replaces: 2316759) |
|
Immediately | $ 70.46 | ||||
| 19 | W11246413 | Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
Immediately | $ 178.99 | ||||
| 20 | WP2004994 | Lock, Bushing (Replaces: 2004994) |
|
Immediately | $ 7.55 | ||||
| 21 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 22 | W11403572 | Stop, Door (Replaces: W10752868) |
|
Immediately | $ 63.43 | ||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 243.77 | ||||
| 24 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 27 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 28 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 72.30 | |||||
| 29 | W10337505 | Hinge, Door (center) |
|
Immediately | $ 127.19 | ||||
| 30 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 31 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 32 | WPW10188547 | Skirt, Grille (black) (Replaces: W10188547) |
|
Immediately | $ 148.75 | ||||
| 33 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 7.54 | ||||
| 34 | W11739145 | Grille, Bottom (Replaces: W10189196) |
|
Immediately | $ 188.17 | ||||
| 35 | 2215612 | Cover, Air Duct |
|
- | |||||
| 36 | WPW10121046 | Assembly, Light Switch Cam (left Hand) (Replaces: W10121046) |
|
Immediately | $ 75.34 | ||||
| 37 | W11610480 | Bracket, Switch (left Hand) |
|
$ 68.84 | |||||
| 38 | W11756944 | Cover, Switch (Replaces: W11533762) |
|
- | |||||
| 39 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 45.61 | ||||
| 40 | W11721628 | Screw (Replaces: W11370632) |
|
Immediately | $ 13.30 | ||||
| 41 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 33.00 | ||||
| 42 | W10782423 | Locking Ring (1/4") |
|
$ 21.93 | |||||
| 43 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 44 | 2314023 | Bushing, Hinge |
|
$ 43.80 | |||||
| 45 | 2005433 | Spacer |
|
$ 21.00 | |||||
| 46 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 | ||||
| 47 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 185.92 | |||||
| 48 | W10482373 | Assembly, Fill Tube Heater Wire |
|
$ 112.59 | |||||
| 49 | W10619899 | Tube, Filter Inlet |
|
$ 41.62 | |||||
| 50 | 2317847 | Assembly, Water Inlet Tube |
|
$ 77.72 | |||||
| 51 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 52 | W10635851 | Tube, Filter Outlet |
|
$ 79.71 | |||||
| 53 | W11225845 | Valve, Solenoid (Replaces: W10574769) |
|
Immediately | $ 178.99 | ||||
| 54 | W10619291 | Shield, Valve Electrical |
|
- | |||||
| 55 | WPW10141604 | Screw (Replaces: 487871) |
|
$ 7.97 | |||||
| 56 | W11479397 | Assembly, Water Valve Wire |
|
$ 70.87 | |||||
| 57 | W11298172 | Arm, Door Closer Extension (left Hand) (Replaces: W11229516) |
|
Immediately | $ 78.69 | ||||
| 58 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.95 | |||||
| 59 | WP8533914 | Washer, Lock (Replaces: 8533914) |
|
Immediately | $ 4.25 | ||||
| 1A | W11644483 | Energy Guide |
|
- | |||||
| 1B | W11511887 | Wiring Diagram |
|
- | |||||
| 1C | W11511881 | Installation Instructions |
|
- | |||||
| 1D | W11511885 | Tech Sheet |
|
- | |||||
| 36A | WP2307857 | Assembly, Light Switch Cam (right Hand) (Replaces: 2307857) |
|
Immediately | $ 71.37 | ||||
| 37A | W11610479 | Bracket, Switch (right Hand) |
|
- | |||||
| 42A | W10782424 | Locking Ring(5/16") |
|
- | |||||
| 57A | W10847927 | Arm, Door Closer Extension (right Hand) (Replaces: W10728112) |
|
$ 89.92 | |||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 344.70 |
