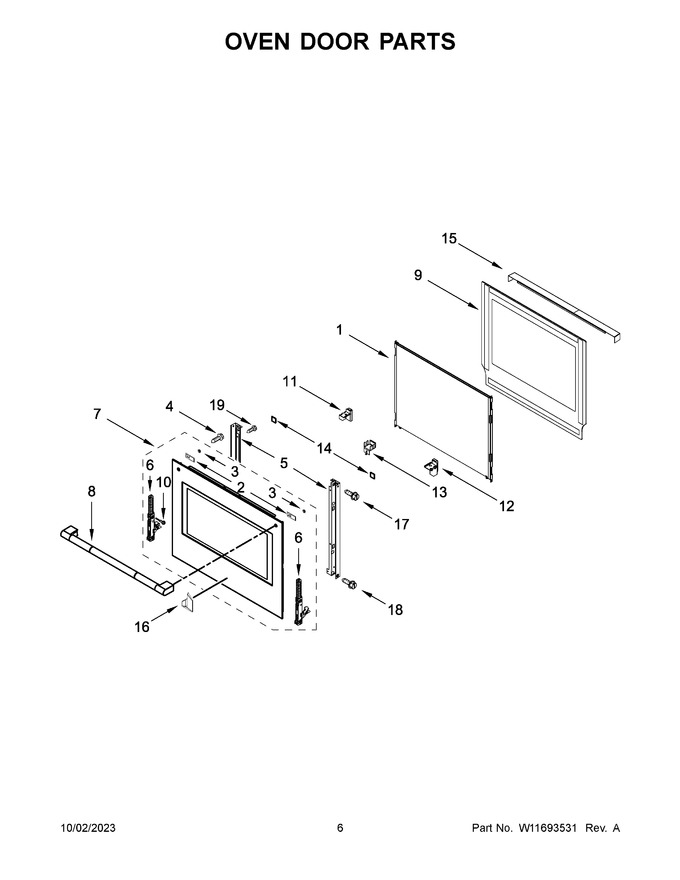

04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11600213		Air Divider Assembly   (Replaces: W11304273)			Immediately	$ 517.89
2	W10650497		Spacer, Handle		Appelez-nous	-
3	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
4	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 13.28
5	W11598126		Rail, Door (left)   (Replaces: W11302773)				$ 39.25
6	W11111221		Hinge, Door (left)			Immediately	$ 167.07
7	W11602609		Door Assembly (includes Hinges) (stainless)   (Replaces: W11296086)			Immediately	$ 1,121.96
8	W11342060		Assembly, Handle (stainless)   (Replaces: W11251202)				$ 358.34
9	W11602610		Glass Cavity Assembly   (Replaces: W11260091)				$ 533.12
10	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.36
11	W11598130		Bracket, Glass (left)   (Replaces: W11302803)			Immediately	$ 42.26
12	W11598128		Bracket, Glass (right)   (Replaces: W11302802)			Immediately	$ 42.26
13	W11598131		Bracket, Glass Reinforcement   (Replaces: W11302954)				$ 12.35
14	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 11.20
15	W11705878		Top Vent Trim Assembly   (Replaces: W11597415)			Immediately	$ 300.07
16	W11320231		Nameplate (stainless)   (Replaces: W11238657)				$ 99.70
17	WP694091		Screw   (Replaces: 694091)				$ 6.80
18	W11617225		Screw   (Replaces: W11290045)				$ 13.29
19	W10443110		Screw			Immediately	$ 13.73
5A	W11598127		Rail, Door (right)   (Replaces: W11302780)				$ 39.25
6A	W11111222		Hinge, Door (right)				$ 120.09
