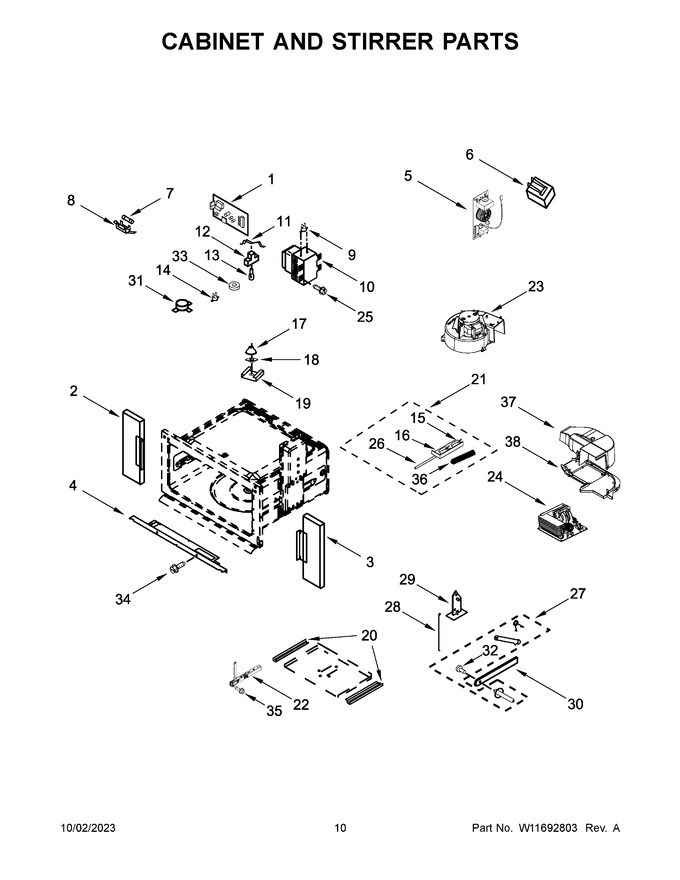

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11325787 | Control Board, Microwave (Replaces: W11290000) |
|
$ 261.28 | |||||
| 2 | W10486208 | Trim, Side (left) (Replaces: 461967017491) |
|
$ 71.23 | |||||
| 3 | 461967017481 | Trim, Side (right) |
|
- | |||||
| 4 | W11334716 | Vent, Top Microwave |
|
$ 58.33 | |||||
| 5 | W11578573 | Filter, Noise (Replaces: W11505129) |
|
Immediately | $ 67.42 | ||||
| 6 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 324.80 | ||||
| 7 | W11188752 | Fuse (Replaces: 241908600053) |
|
Immediately | $ 15.63 | ||||
| 8 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 78.58 | |||||
| 9 | W11233913 | Thermostat, Magnetron (Replaces: 461967846741) |
|
Immediately | $ 140.47 | ||||
| 10 | W11578959 | Magnetron (Replaces: W11504545) |
|
Immediately | $ 156.94 | ||||
| 11 | W10465869 | Spring, Lamp |
|
Immediately | $ 93.38 | ||||
| 12 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 70.04 | |||||
| 13 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 29.00 | ||||
| 14 | W11568584 | Thermostat (Replaces: W10389447) |
|
$ 40.10 | |||||
| 15 | W10211972 | Switch (Replaces: 461967848881) |
|
Immediately | $ 47.16 | ||||
| 16 | W11214928 | Holder, Switch (Replaces: W10876593) |
|
$ 32.45 | |||||
| 17 | 423107022541 | Reflector |
|
$ 77.31 | |||||
| 18 | W11193483 | Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 94.34 | ||||
| 19 | W11440819 | Clip, Spring |
|
$ 20.70 | |||||
| 20 | 8205707 | Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 61.91 | ||||
| 21 | W11033422 | Assembly, Interlock Switch (Replaces: W10358241) |
|
Immediately | $ 174.90 | ||||
| 22 | W11732688 | Hinge, Door (Replaces: W11131527) |
|
$ 92.10 | |||||
| 23 | W11344874 | Cooling Fan Assembly (Replaces: W11131760) |
|
Immediately | $ 172.57 | ||||
| 24 | W11578579 | Inverter (Replaces: W11504539) |
|
Immediately | $ 233.99 | ||||
| 25 | 461967825971 | Screw |
|
- | |||||
| 26 | WPW10120235 | Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 6.59 | ||||
| 27 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 127.87 | ||||
| 28 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 65.07 | |||||
| 29 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 13.97 | ||||
| 30 | W11607070 | Arm, Sliding (Replaces: W11213889) |
|
$ 26.06 | |||||
| 31 | W10460457 | Sensor, Humidity |
|
Immediately | $ 119.39 | ||||
| 32 | WPW10128850 | Bushing (Replaces: 461967510191) |
|
Immediately | $ 127.87 | ||||
| 33 | W10769147 | Sealing, Lamp |
|
Immediately | $ 22.04 | ||||
| 34 | 461967825321 | Screw |
|
$ 10.92 | |||||
| 35 | W11690594 | Screw (shoulder) (Replaces: 461967825781) |
|
$ 13.31 | |||||
| 36 | W11715912 | Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 7.44 | ||||
| 37 | W11646907 | Housing, Upper Inverter (Replaces: W11591019) |
|
$ 74.14 | |||||
| 38 | W11646906 | Housing, Lower Inverter (Replaces: W11591018) |
|
- | |||||
| NI | W11539494 | Harness, Inverter |
|
$ 39.05 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11797348 | Harness, Interlock (Replaces: W11555169) |
|
$ 116.76 | |||||
| NI | W11555848 | Harness, Input |
|
- | |||||
| NI | W11578580 | Jumper Harness, Communication (Replaces: W11539527) |
|
$ 27.22 | |||||
| NI | W11546965 | Harness, Fan And Turntable (Replaces: W11454022) |
|
$ 70.99 |
