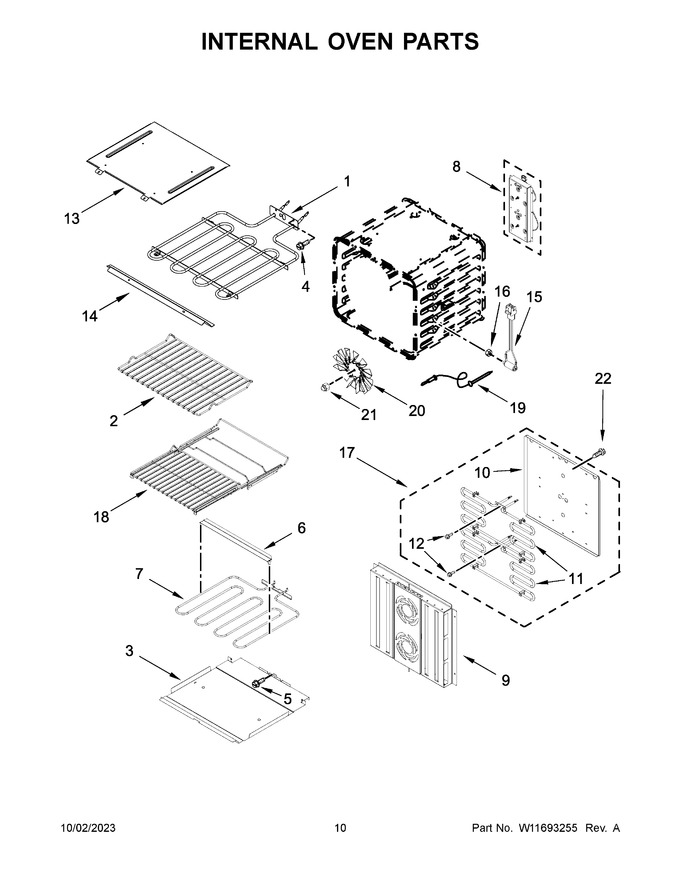

06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598122 | Element, Broil (Replaces: W11238159) |
|
$ 117.62 | |||||
| 2 | W11242906 | Rack, Oven |
|
$ 184.75 | |||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 131.81 | ||||
| 8 | W11255349 | Assembly, Convection Motor (Replaces: W11200176) |
|
Immediately | $ 371.93 | ||||
| 9 | W11313747 | Assembly, Baffle |
|
$ 214.88 | |||||
| 10 | W10853277 | Shield, Convection |
|
$ 84.79 | |||||
| 11 | W10663735 | Element, Convection |
|
$ 277.74 | |||||
| 12 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 7.54 | ||||
| 13 | W11598121 | Reflector, Broil (Replaces: W11235537) |
|
$ 55.97 | |||||
| 14 | W10588737 | Shield, Broil Front |
|
$ 94.86 | |||||
| 15 | W11821374 | Jack, Meat Probe (Replaces: W11252826) |
|
$ 69.46 | |||||
| 16 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 12.12 | |||||
| 17 | W11098805 | Assembly, Convection Element (Replaces: W10854021) |
|
$ 231.32 | |||||
| 18 | W11256305 | Rack, Sliding |
|
$ 329.03 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 20 | W11301887 | Blade, Convection Fan (Replaces: W10803141) |
|
Immediately | $ 318.46 | ||||
| 21 | W11548755 | Nut, Acorn (lh) (Replaces: W11433702) |
|
$ 13.84 | |||||
| 22 | W10739592 | Screw |
|
- | |||||
| 21A | W10803140 | Nut, Acorn (rh) |
|
$ 12.39 |
