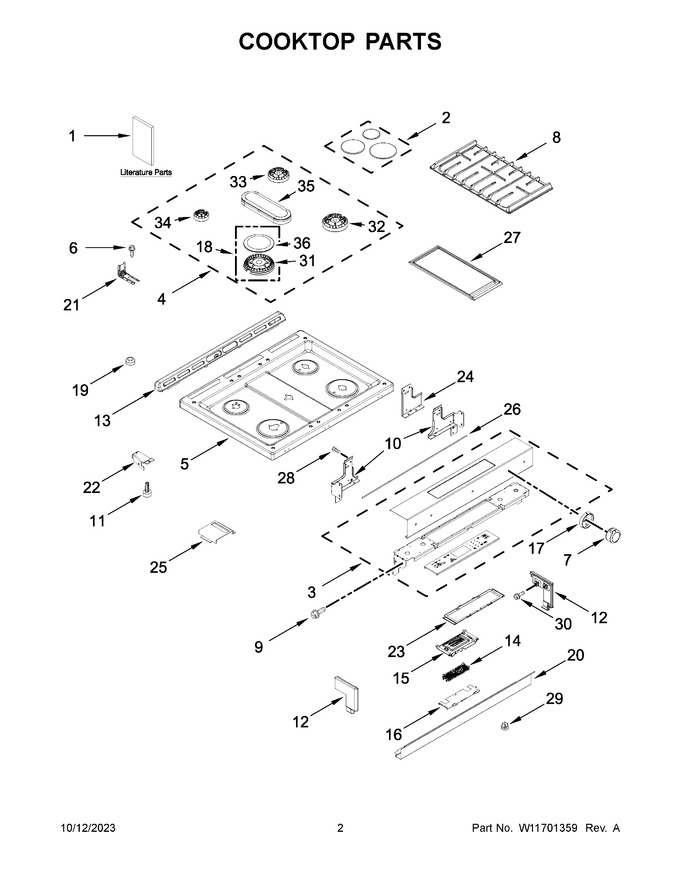

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426594		Owners Manual		Appelez-nous	-
2	W11834855		Burner Cap Kit (black (set Of 3))   (Replaces: W11367440)		Appelez-nous	-
3	W10913685		Console (stainless)   (Replaces: W10901118)				$ 730.75
4	W11834876		Burner Kit (set Of 5)   (Replaces: W11367105)			Immediately	$ 257.45
5	W11445310		Cooktop (stainless)   (Replaces: W11117940)				$ 420.47
6	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
7	W10872668		Knob (stainless (all Except Left Front))   (Replaces: W10786065)			Immediately	$ 118.35
8	W11241056		Grate Kit (black)   (Replaces: W11188538)				$ 368.89
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
10	W10289170		Bracket,support (left)   (Replaces: W11563529)				$ 27.05
11	8016P02260		Glide, Main Top		Appelez-nous	-
12	W10555937		Endcap (stainless (left))				$ 61.16
13	W10577782		Trim, Vent (stainless)				$ 129.21
14	W11620672		Control, Mrc2   (Replaces: W11541188)				$ 335.25
15	W11128223		Assembly, Display   (Replaces: W10759323)			Immediately	$ 529.17
16	W10558372		Bracket, Control				$ 22.59
17	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 102.04
18	W11443594		Burner Kit (includes Cap And Spreader) (left Front)   (Replaces: W11366282)			Immediately	$ 148.74
19	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
20	W10743276		Console, Lower Panel (stainless)				$ 78.01
21	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
22	W10162253		Brace, Corner (left)				$ 66.72
23	W10555923		Bracket, User Interface				$ 96.69
24	W10598048		Bracket, Console (center)				$ 23.16
25	W11355689		Keypad Shield				$ 20.38
26	W11620671		Gasket, Console And Cooktop   (Replaces: W11512127)				$ 22.61
27	W10432544		Griddle			Immediately	$ 59.79
28	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
29	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.84
30	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
31	W11436986		Flame Spreader, Stack (left Front)   (Replaces: W11348511)			Immediately	$ 124.90
32	W11531096		Flame Spreader (right Front)   (Replaces: W11352193)				$ 73.73
33	W11531097		Flame Spreader (right Rear)   (Replaces: W11352195)				$ 73.04
34	W11531098		Flame Spreader (left Rear)   (Replaces: W11352197)				$ 72.65
35	W11548764		Spreader, Flame (fish) (center)   (Replaces: W11357364)				$ 145.55
36	W11576413		Cap, Burner (black (left Front))   (Replaces: W11346163)				$ 80.33
10A	W11563527		Bracke T, Support (right)		Appelez-nous	-
12A	W10555940		Endcap (stainless (right))				$ 61.16
1A	W11565456		Tech Sheet		Appelez-nous	-
1B	W11427468		Quick Start Guide		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 70.73
7A	W10872674		Knob (stainless (left Front))   (Replaces: W10786064)			Immediately	$ 60.34
NI	W11635421		Harness, Main				$ 162.58
NI	W10580229		Wire, Ground				$ 34.40
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 67.76
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 202.46
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11635422		Harness, Bake And Warm Drawer				$ 34.66
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W11198972		Harness, Bake And Broil   (Replaces: W10754419)				$ 32.26
