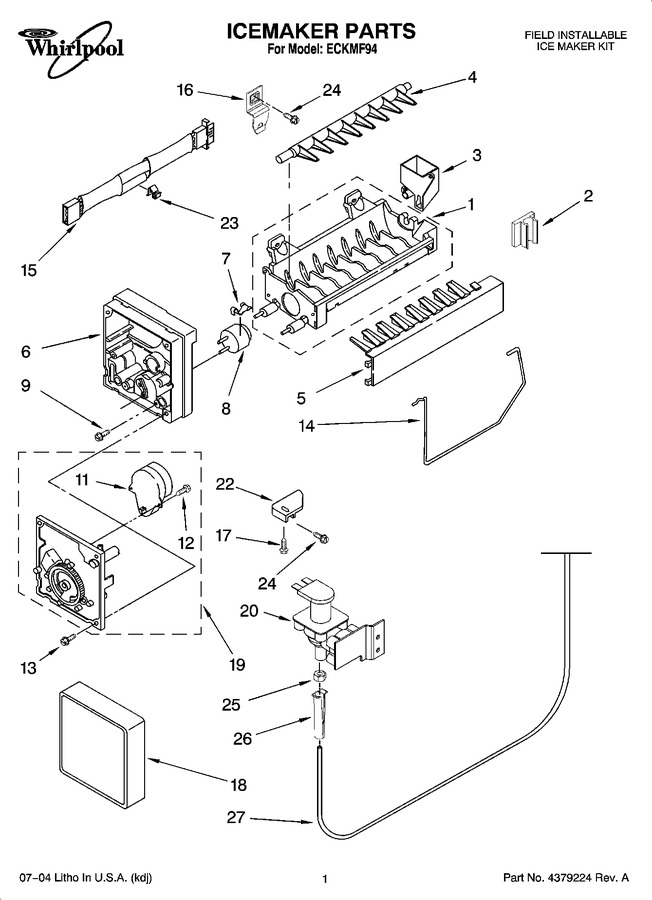

01 - Icemaker Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10190929 | Mold & Heater Assembly (Replaces: 628228) |
|
$ 233.52 | |||||
| 2 | W11501419 | Clip (Replaces: 2154101) |
|
Immediately | $ 12.10 | ||||
| 3 | WP628356 | Bearing & Inlet (Replaces: 628356) |
|
$ 53.75 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 6 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 7 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.60 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cememnt Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 9 | 8533917 | Screw, (2) 10-32 X 49/64 |
|
$ 14.04 | |||||
| 11 | W10190935 | Motor (Replaces: 627811) |
|
Immediately | $ 136.28 | ||||
| 12 | 489136 | Screw, (2) 3-24 X 23/64 |
|
$ 10.80 | |||||
| 13 | WP681249 | Screw (3) (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 14 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 88.76 | |||||
| 15 | WP2187464 | Wiring, Harness (Replaces: 2187464) |
|
$ 130.80 | |||||
| 16 | 2155021 | Clip, Icemaker |
|
- | |||||
| 17 | WP489478 | Screw, 8-18 X .50 (Replaces: 489478) |
|
$ 8.18 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2210485) |
|
Immediately | $ 8.82 | ||||
| 19 | 8201515 | Module Assembly (includes Items 11 & 12) (Replaces: 626653) |
|
Immediately | $ 159.78 | ||||
| 20 | WP2315576 | Valve Solenoid (Replaces: 2210436) |
|
Immediately | $ 98.12 | ||||
| 22 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 23 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 24 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 25 | WP627018 | Compression Nut (Replaces: 627018) |
|
$ 11.51 | |||||
| 26 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 27 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 27 | ARI25540A9 | Note: The Following Parts Are Components Of Accessory Bag |
|
- | |||||
| 27 | ARI25539A8 | Following Parts Not Illustrated |
|
- | |||||
| 27 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 27 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 27 | WP488878 | Tube Clamp (Replaces: 488878) |
|
$ 12.18 | |||||
| 27 | 2155247 | Tube, Water Inlet |
|
- | |||||
| 27 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 27 | 2155462 | Instruction Booklet |
|
- | |||||
| 27 | ARI25541A3 | Literature Parts |
|
- | |||||
| 27 | W10823511 | Water Tube (Replaces: 2181946) |
|
Immediately | $ 32.41 | ||||
| 27 | W11729596 | Complete Ice Maker (Replaces: 2155469) |
|
Immediately | $ 155.00 | ||||
| 27 | W11625904 | Ice Cube Pan (Replaces: 2166261) |
|
$ 67.83 | |||||
| 27 | 837122 | Trim Ice Cube Pan |
|
- | |||||
| 27 | 2155466 | Accessory Bag, Inside Parts |
|
- | |||||
| 27 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 12.59 | ||||
| 27 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 27 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 |
