SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

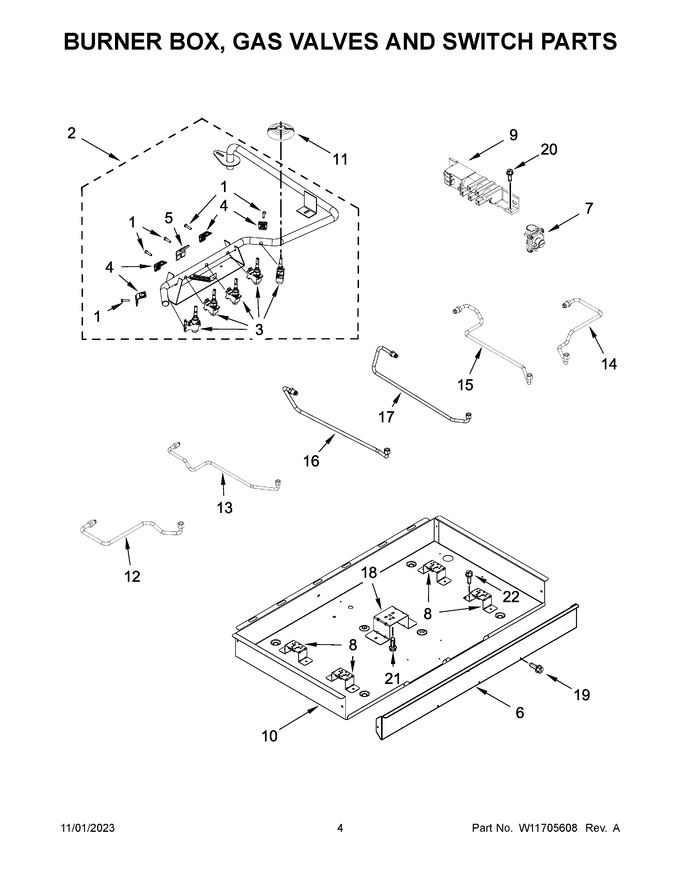

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.66
2	W11706303		Manifold Assembly   (Replaces: W11673570)		Appelez-nous	-
3	W11706286		Valve, Single (left Front)   (Replaces: W11672772)		Appelez-nous	-
4	8287055		Bracket, Single Valve				$ 68.81
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10721889		Panel, Front   (Replaces: W10614950)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 190.26
8	W10594429		Bracket, Orifice Holder				$ 21.00
9	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 86.99
10	W11706304		Box, Burner   (Replaces: W11678090)		Appelez-nous	-
11	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 18.27
12	W10566294		Tubing, Gas Burner (left Front)		Appelez-nous	-
13	W10566295		Tubing, Gas Burner (left Rear)				$ 68.81
14	W10566299		Tubing, Gas Burner (right Front)				$ 66.89
15	W10566298		Tubing, Gas Burner (right Rear)				$ 70.07
16	W10566296		Tubing, Gas Burner (center, Main)		Appelez-nous	-
17	W10566297		Tubing, Gas Burner (simmer) (center, Simmer)		Appelez-nous	-
18	W10594430		Bracket, Orifice Holder				$ 28.15
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	7101P42660		Screw		Appelez-nous	-
21	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 13.28
22	W10443110		Screw			Immediately	$ 13.73
3A	W11706289		Valve, Single (left Rear)   (Replaces: W11672768)		Appelez-nous	-
3B	W11706290		Valve, Single (right Front)   (Replaces: W11672770)		Appelez-nous	-
3C	W11706291		Valve, Single (right Rear)   (Replaces: W11672771)		Appelez-nous	-
3D	W11706293		Valve, Dual (center)   (Replaces: W11672773)				$ 119.80
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	3801F93551		Bracket, Tie Down		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.80
NI	9760045		Seal, Foam				$ 248.24
NI	8270P18860		Tape, Foam		Appelez-nous	-
NI	W11637584		Harness, Spark Module   (Replaces: W10878749)				$ 30.01
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11706284		Harness, Switch   (Replaces: W11665047)			Immediately	$ 72.50
NI	7101P06260		Screw (used For Tie Down Bracket)		Appelez-nous	-
NI	W10676661		Kit, Lp Conversion				$ 37.92
NI	W10392003		Cord, Power				$ 145.50
NI	W10685483		Griddle				$ 99.79

    View Diagram in Separate Window       Print Part List
