SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door And Vent Door Parts

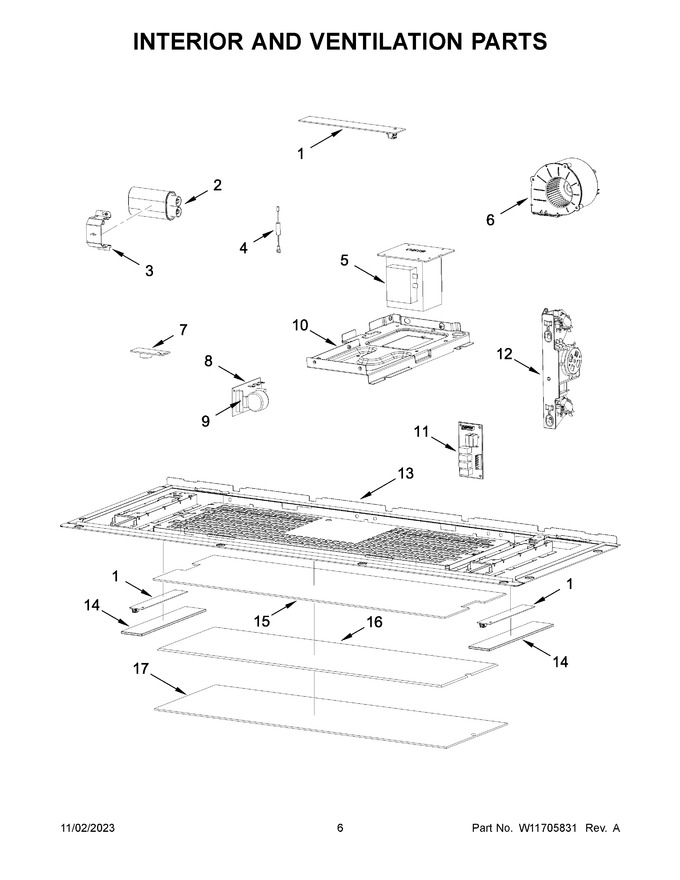

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662697 | Light Strip, Led (Replaces: W11573514) |
|
$ 39.98 | |||||
| 2 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 183.78 | ||||
| 3 | W11095808 | Bracket, Capacitor |
|
- | |||||
| 4 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 31.37 | ||||
| 5 | W11575449 | Transformer, High Voltage |
|
$ 177.02 | |||||
| 6 | W11662648 | Assembly, Cooling Fan (Replaces: W11615947) |
|
Immediately | $ 102.60 | ||||
| 7 | W10163422 | Thermistor |
|
$ 161.73 | |||||
| 8 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 51.19 | ||||
| 9 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 10 | W11586579 | Plate, Hvt Support |
|
- | |||||
| 11 | W11676832 | Pcba, Hood Control (mimas) (Replaces: W11594596) |
|
$ 283.55 | |||||
| 12 | W11662685 | Assembly, Interlock (Replaces: W11590601) |
|
Immediately | $ 75.23 | ||||
| 13 | W11593188 | Plate, Bottom |
|
Immediately | $ 128.95 | ||||
| 14 | W11593189 | Glass, Light |
|
- | |||||
| 15 | W11662714 | Filter, Charcoal (Replaces: W11593195) |
|
Immediately | $ 33.33 | ||||
| 16 | W11662703 | Filter, Grease (Replaces: W11593196) |
|
$ 33.65 | |||||
| 17 | W11662702 | Cover, Filter (Replaces: W11662386) |
|
$ 67.45 |
