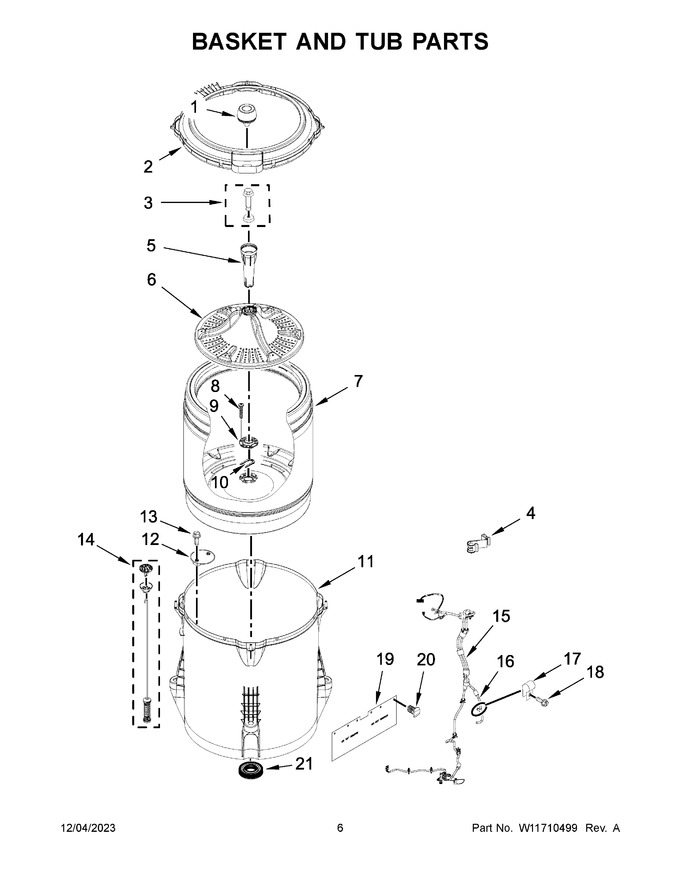

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11024702 | Dispenser, Fabric Softener (Replaces: W10680192) |
|
$ 72.71 | |||||
| 2 | W11550886 | Tub Ring (Replaces: W11043544) |
|
Immediately | $ 103.70 | ||||
| 3 | W11223765 | Bolt And Washer (Replaces: W11121786) |
|
Immediately | $ 13.68 | ||||
| 4 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 6.95 | ||||
| 5 | W10836692 | Barrel, Agitator (Replaces: W10680220) |
|
Immediately | $ 125.24 | ||||
| 6 | W10919191 | Impeller (washplate) (Replaces: W10680219) |
|
Immediately | $ 174.31 | ||||
| 7 | W11172199 | Basket Assembly |
|
Immediately | $ 364.73 | ||||
| 8 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 9 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 40.16 | ||||
| 10 | W11385424 | Retainer, Drive Block (Replaces: W11284133) |
|
Immediately | $ 11.67 | ||||
| 11 | W10371566 | Tub (Replaces: W10238320) |
|
$ 320.71 | |||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 14 | W11217817 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11226768) |
|
Immediately | $ 204.31 | ||||
| 15 | W11370593 | Harness, Lower |
|
- | |||||
| 16 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 23.23 | ||||
| 17 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 18 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 19 | W10339098 | Shield, Splash |
|
$ 23.27 | |||||
| 20 | W10429200 | Retainer, Push-in |
|
- | |||||
| 21 | W10324647 | Seal, Tub (Replaces: W10580763) |
|
Immediately | $ 84.15 |
