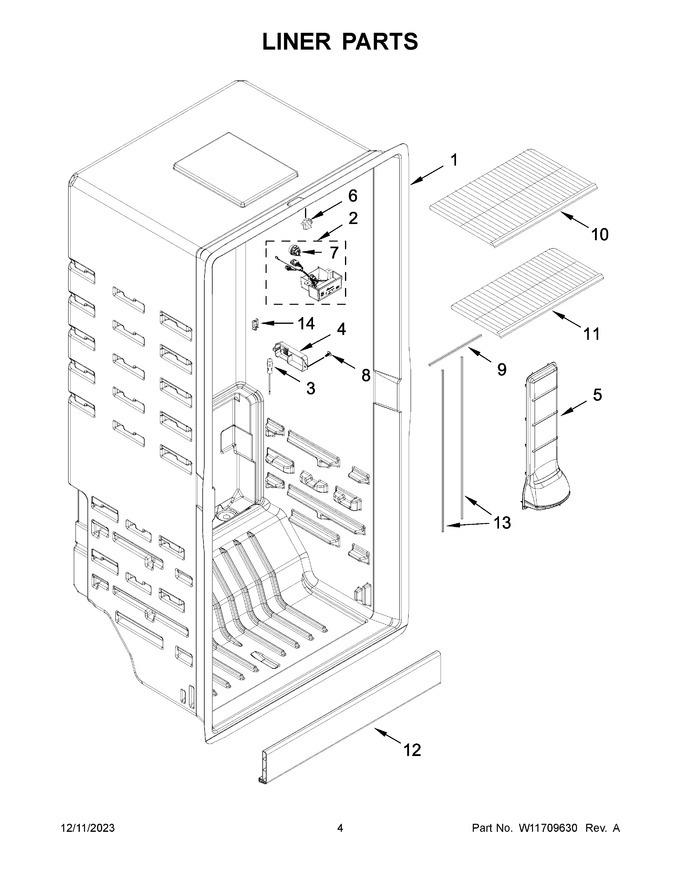

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11648652 | Control Assembly (Replaces: W11555881) |
|
$ 255.57 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 28.11 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 121.58 | |||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 22.26 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 32.13 | |||||
| 8 | WPW10142283 | Screw (Replaces: W11546550) |
|
$ 9.30 | |||||
| 9 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.88 | |||||
| 10 | W10836976 | Wire Shelf, Deep (Replaces: W10569280) |
|
Immediately | $ 156.34 | ||||
| 11 | W10838567 | Wire Shelf, Shallow (Replaces: W10569281) |
|
Immediately | $ 82.62 | ||||
| 12 | W10581588 | Trim, Door |
|
$ 80.83 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.88 | |||||
| 14 | W11233642 | Clip (Replaces: 2223913) |
|
- |
