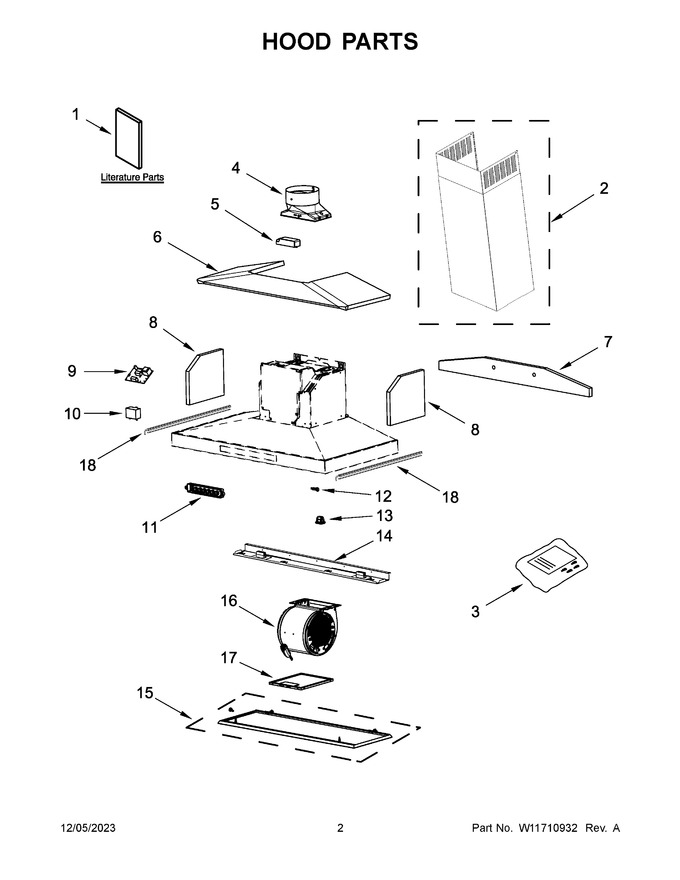

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11244200		Use And Care Guide		Appelez-nous	-
2	W11321566		Chimney, Upper And Lower   (Replaces: W11321337)				$ 360.81
3	W11088595		Hardware, Installation			Immediately	$ 82.13
4	W10847841		Damper, Hood   (Replaces: W10592040)				$ 140.43
5	W11282989		Driver, Led   (Replaces: W11281878)				$ 237.02
6	W11688772		Insulation (30" Model Only)   (Replaces: W10716812)			Immediately	$ 209.38
7	W11684907		Insulation, Back (30" Model Only)   (Replaces: W10727038)			Immediately	$ 114.26
8	W11848867		Insulation, Side   (Replaces: W10717244)				$ 81.32
9	W11293971		Board, Control   (Replaces: W11291913)				$ 314.48
10	W11715950		Capacitor (25 Mf)   (Replaces: W11245979)			Immediately	$ 91.53
11	WPW10716813		Control, Electronic   (Replaces: W10716813)			Immediately	$ 288.49
12	W11737108		Sensor, Speed   (Replaces: W10716822)				$ 203.18
13	W10854245		Clip, Panel   (Replaces: W10735735)			Immediately	$ 68.03
14	W11755729		Panel, Led Lights (30" Model Only)   (Replaces: W11321563)			Immediately	$ 365.09
15	W10738510		Panel, Perimetric (30" Model Only)				$ 320.18
16	W11106377		Blower, Fan   (Replaces: W10638161)			Immediately	$ 661.19
17	W10915369		Filter, Grease   (Replaces: W10727013)			Immediately	$ 39.73
18	W10916652		Led Strip, Ambient			Immediately	$ 206.13
14A	W11744508		Panel, Led Lights (36" Model Only)   (Replaces: W11321564)			Immediately	$ 364.69
15A	W10738512		Panel, Perimetric (36" Model Only)				$ 336.56
6A	W11688395		Insulation (36" Model Only)   (Replaces: W10727039)				$ 121.30
7A	W11684803		Insulation, Back (36" Model Only)   (Replaces: W10727040)				$ 81.34
