SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

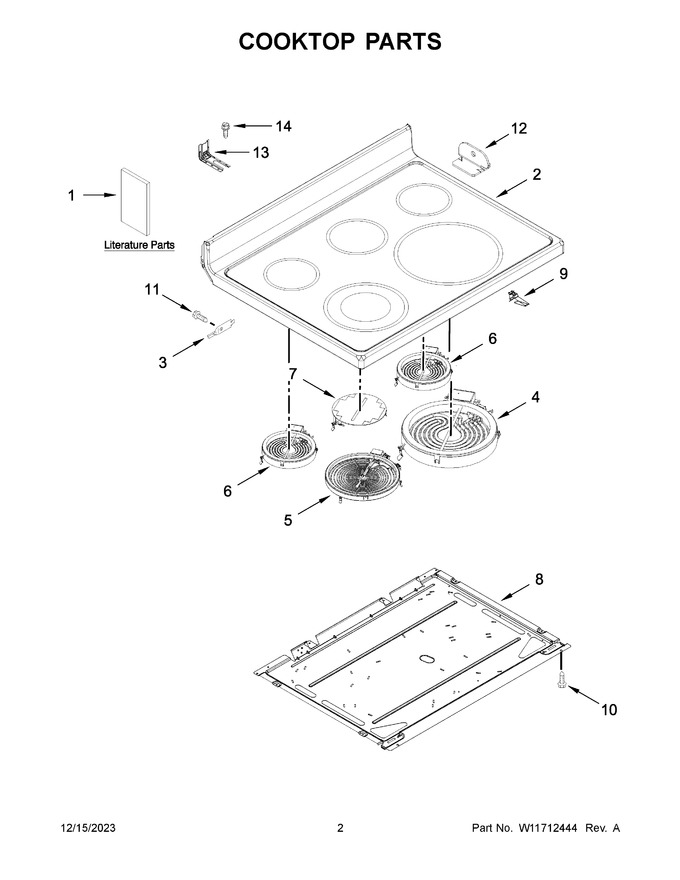

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual		Appelez-nous	-
2	W10691697		Cooktop (white)   (Replaces: W10655914)				$ 531.85
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.86
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 307.76
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 347.49
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 203.06
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 119.66
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 13.36
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
12	W10607641		Bracket, Cooktop (left)				$ 30.17
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W11503321		Tech Sheet		Appelez-nous	-
1B	W11469630		Quick Start Guide		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 105.53
NI	W11212183		Harness, Sensor				$ 212.08
NI	W11188418		Harness, Cooktop (left)				$ 201.03
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 192.83
NI	W11451788		Main Harness				$ 267.84
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
