View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

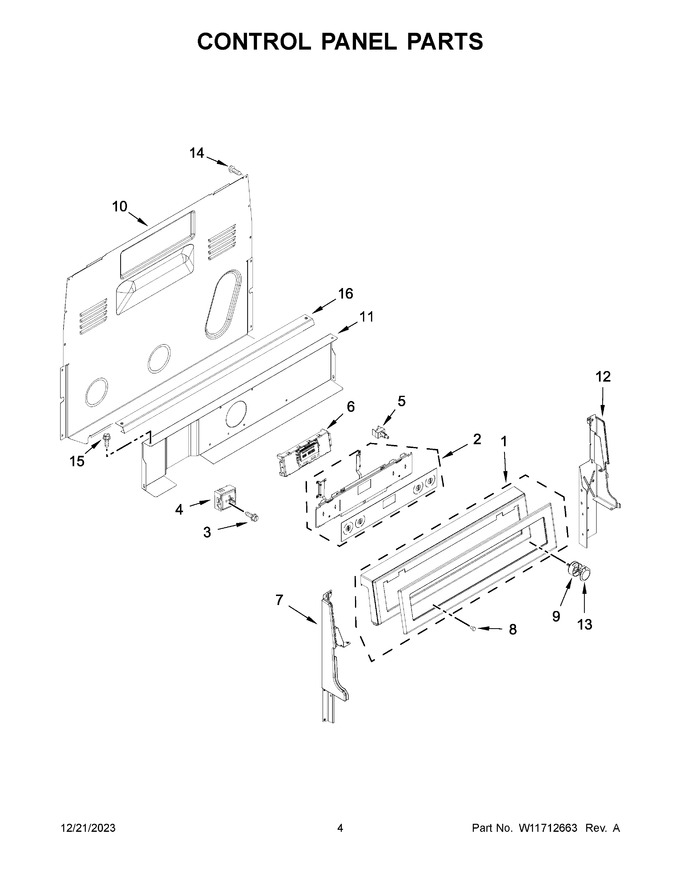

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11084228 | Console (black Stainless) (Replaces: W11024860) |
|
$ 505.78 | |||||
| 2 | W11527488 | Assembly, Active Overlay (black) |
|
$ 289.55 | |||||
| 3 | W10674068 | Screw |
|
$ 21.95 | |||||
| 4 | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | W11088877 | Control, Maxwell (Replaces: W10894863) |
|
Immediately | $ 359.32 | ||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
Immediately | $ 138.45 | ||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 9 | W11368920 | Bezel, Knob (Replaces: W10645811) |
|
Immediately | $ 54.50 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 12 | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
Immediately | $ 40.65 | ||||
| 13 | W10915061 | Knob (stainless) (Replaces: W10823535) |
|
Immediately | $ 67.05 | ||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 4A | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 |
