01 - Cover Sheet

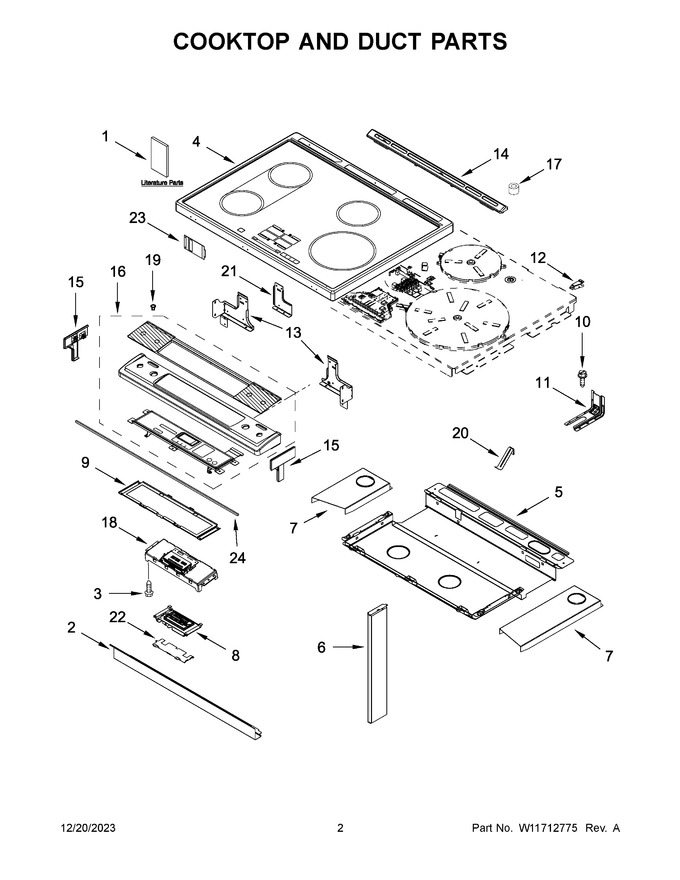

02 - Cooktop And Duct Parts
03 - Induction Assembly Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11637353 | Use And Care Guide |
|
- | |||||
| 2 | W10743276 | Console, Lower Panel (stainless) |
|
$ 78.01 | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W11690817 | Cooktop (black) (Replaces: W11625481) |
|
Immediately | $ 1,121.22 | ||||
| 5 | W11691349 | Pan, Induction (lower) (Replaces: W11610925) |
|
- | |||||
| 6 | W11691362 | Assembly, Induction Side Duct (Replaces: W11610960) |
|
- | |||||
| 7 | W11693489 | Duct, Recirculation Plate (left) (Replaces: W11610945) |
|
- | |||||
| 8 | W11105615 | Assembly, Display (Replaces: W10759325) |
|
Immediately | $ 474.88 | ||||
| 9 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 15 | W10555937 | Endcap (stainless (left)) |
|
$ 61.16 | |||||
| 16 | W11691346 | Console (black) (Replaces: W11633376) |
|
Immediately | $ 949.41 | ||||
| 17 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 18 | W11691347 | Control, Electronic (maxwell) (Replaces: W11636877) |
|
Immediately | $ 332.60 | ||||
| 19 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 20 | W11616082 | Spring (cantilever) |
|
- | |||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 22 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 23 | W11355689 | Keypad Shield |
|
$ 20.38 | |||||
| 24 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 15A | W10555940 | Endcap (stainless (right)) |
|
$ 61.16 | |||||
| 1A | W11637366 | Tech Sheet |
|
- | |||||
| 1B | W11637354 | Quick Start Guide |
|
- | |||||
| 1C | W11637361 | Dimension Guide |
|
- | |||||
| 7A | W11693490 | Duct, Recirculation Plate (right) (Replaces: W11610944) |
|
- | |||||
| NI | 7103P02760 | Nut |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 213.24 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11691348 | Harness, Main (Replaces: W11631333) |
|
Immediately | $ 354.94 |
