SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts

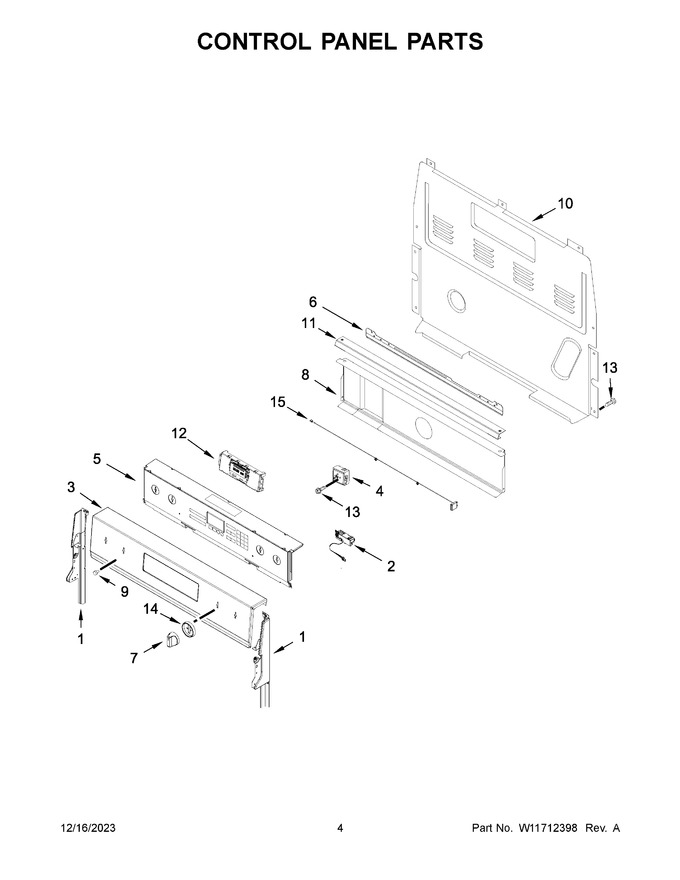

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 312.99
2	W11165979		Assembly, Wifi   (Replaces: W10888670)				$ 149.95
3	W11165617		Console (stainless)   (Replaces: W10869991)				$ 485.37
4	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 98.78
5	W11594265		Bracket, Control (includes Overlay) (black)   (Replaces: W11527492)				$ 350.14
6	W11443964		Bracket, Eye Brow (black)				$ 200.19
7	W11416802		Knob (stainless)   (Replaces: W10917219)			Immediately	$ 67.44
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
12	W11165552		Control, Maxwell   (Replaces: W10871059)			Immediately	$ 451.44
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	W10918419		Bezel (stainless)			Immediately	$ 67.96
15	W11594266		Antenna   (Replaces: W11516201)		Appelez-nous	-
14A	W10917223		Bezel (black Stainless)		Appelez-nous	-
1A	W11213292		Endcap (black (right))				$ 64.49
3A	W11165616		Console (black Stainless)   (Replaces: W10881625)				$ 485.40
4A	W10857622		Switch, Infinite (right Front)   (Replaces: W10437092)			Immediately	$ 215.89
4B	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
4C	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
7A	W11674369		Knob (black Stainless)   (Replaces: W10917220)				$ 19.39
