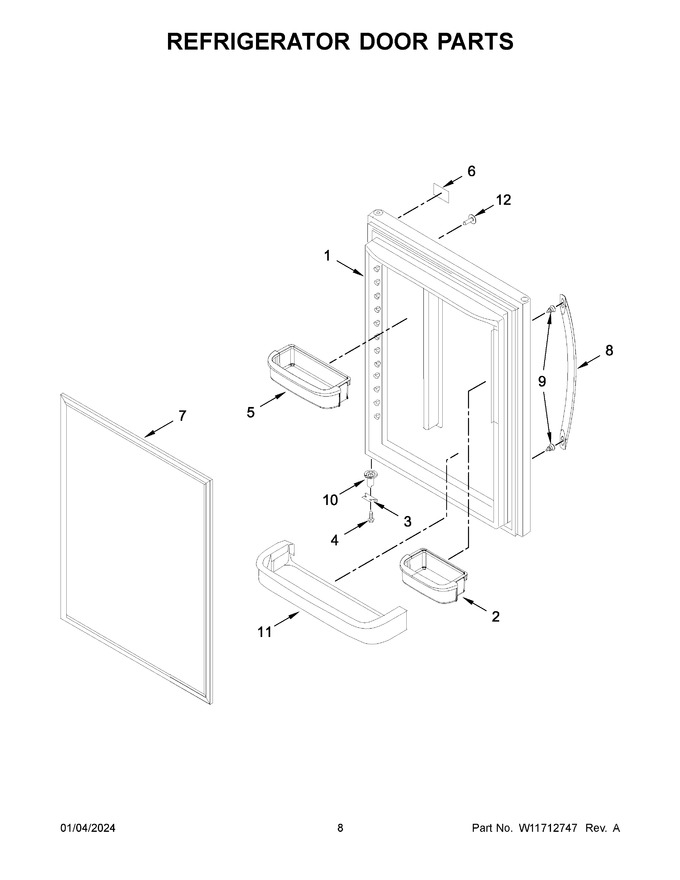

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402BQ | Door, Refrigerator (black) (Replaces: 13109402B) |
|
$ 838.18 | |||||
| 2 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 78.22 | ||||
| 3 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 13.28 | ||||
| 4 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 7 | W11676571 | Gasket, Door (grey) (Replaces: W10443310) |
|
Immediately | $ 205.07 | ||||
| 8 | W10830130 | Handle, Door (black) (Replaces: W10686442) |
|
Immediately | $ 170.59 | ||||
| 9 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 16.12 | ||||
| 10 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
Immediately | $ 81.29 | ||||
| 11 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 94.31 | ||||
| 12 | WP12246608 | Plug, Hole (black) (Replaces: 12246608) |
|
Immediately | $ 7.34 |
