SELECT A DIAGRAM
New Model Search:

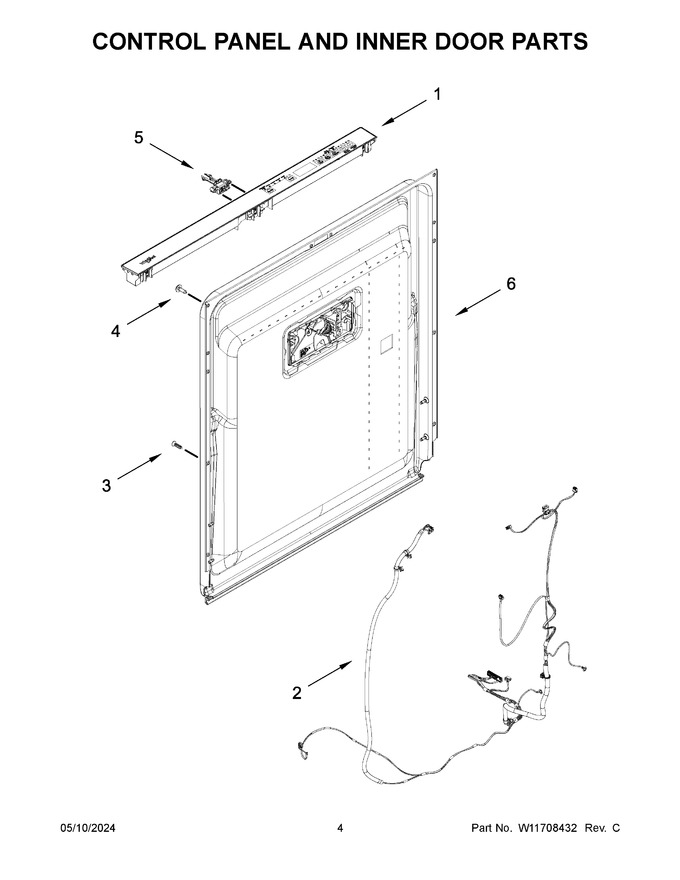

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11693637 | Console Assembly (includes Insert) (black) (Replaces: W11549246) |
|
Immediately | $ 291.38 | ||||
| 2 | W11693745 | Wiring Harness, Inner Door (Replaces: W11545948) |
|
- | |||||
| 3 | W11729111 | Screw (Replaces: W10941960) |
|
$ 13.24 | |||||
| 4 | WPW10213953 | Screw (Replaces: W10711884) |
|
Immediately | $ 6.80 | ||||
| 5 | W11412299 | Latch Assembly (includes Switch) (Replaces: W11091934) |
|
Immediately | $ 26.73 | ||||
| 6 | W11690648 | Inner Door Assembly (includes Soap Dispenser) |
|
$ 352.11 | |||||
| 1A | W11693748 | Console Assembly (includes Insert) (white) (Replaces: W11549245) |
|
$ 294.42 |
