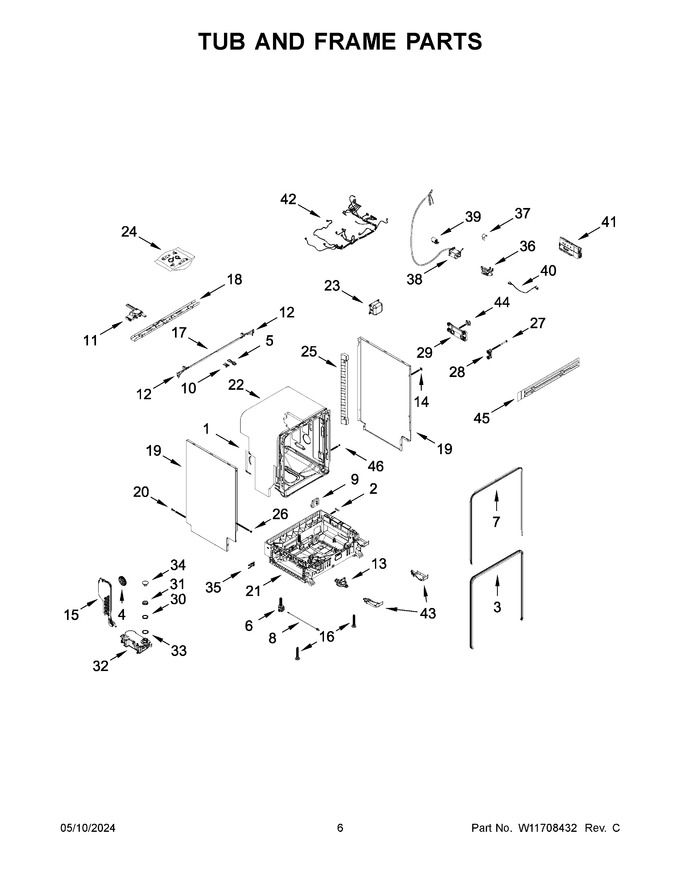

04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARIA17CA5C5D5FD35750732AA32B1D13FC1		Tub (not Serviced)		Appelez-nous	-
2	W11690545		Pad, Tub Support   (Replaces: W11671752)		Appelez-nous	-
3	W11690846		Gasket, Tub   (Replaces: W11658880)			Immediately	$ 101.20
4	W11693614		Nut, Air Break   (Replaces: W11236521)		Appelez-nous	-
5	W11693599		Strike, Latch   (Replaces: W11314779)				$ 25.29
6	W11696091		Assembly, Leveling Leg (rear)   (Replaces: W11316238)			Immediately	$ 25.70
7	W11693589		Retainer, Tub Gasket   (Replaces: W11554391)			Immediately	$ 75.65
8	W11696093		Rod, Foot Adjustment (rear)   (Replaces: W11325471)			Immediately	$ 50.09
9	W11690570		Holder, Damper   (Replaces: W11668893)		Appelez-nous	-
10	W11693590		Cover, Door Opening   (Replaces: W11317043)			Immediately	$ 26.09
11	W11693591		Assembly, Door Opening   (Replaces: W11590760)			Immediately	$ 167.05
12	W11697221		Cover, Tub Corner (left)   (Replaces: W11316692)		Appelez-nous	-
13	W11690660		Float Switch   (Replaces: W11602936)			Immediately	$ 70.87
14	W11697220		Plug, Tub   (Replaces: W11321022)				$ 12.88
15	W11693838		Air Break   (Replaces: W11568183)				$ 93.20
16	W11696092		Leg, Leveling (front)   (Replaces: W11325130)			Immediately	$ 15.58
17	W11697223		Cover, Top   (Replaces: W11317036)		Appelez-nous	-
18	W11697225		Crossbar, Front Frame   (Replaces: W11306174)		Appelez-nous	-
19	W11701674		Side Panel (left)   (Replaces: W11355600)				$ 148.94
20	W11697243		Screw   (Replaces: W10986499)		Appelez-nous	-
21	W11690567		Assembly, Base				$ 197.21
22	W11697224		Shield, Tub Sound   (Replaces: W11564606)				$ 145.04
23	W11695958		Assembly, Junction Box   (Replaces: W11643567)			Immediately	$ 131.57
24	W11696038		Miscellaneous Parts Bag				$ 149.63
25	W11697245		Spacer, Side Panel   (Replaces: W11525808)		Appelez-nous	-
26	W11697248		Screw   (Replaces: W11350847)				$ 13.82
27	W11697250		Screw   (Replaces: W10941972)		Appelez-nous	-
28	W11690618		Tub Mount, Upper Rack   (Replaces: W11345595)				$ 21.84
29	W11698156		Tub Mount, Third Level Rack (left)   (Replaces: W11386114)				$ 60.23
30	W11698540		Nut, Softner   (Replaces: W11227921)		Appelez-nous	-
31	W11698541		Cap, Salt   (Replaces: W11227934)		Appelez-nous	-
32	W11698542		Softener, Water   (Replaces: W11546882)		Appelez-nous	-
33	W11698543		Seal, Softener   (Replaces: W11224085)		Appelez-nous	-
34	W11698545		Funnel, Salt   (Replaces: W11509486)				$ 19.96
35	W11690633		Plate, In/out Hoses   (Replaces: W11686061)		Appelez-nous	-
36	W11693747		Jumper, Rfi To Control   (Replaces: W11545951)		Appelez-nous	-
37	W11698572		Spring, Grounding   (Replaces: W10943118)		Appelez-nous	-
38	W11696044		Power Cord Assembly   (Replaces: W11578108)			Immediately	$ 180.68
39	W11693746		Filter, Rfi   (Replaces: W11418782)				$ 67.02
40	W11690657		Jumper Harness, Service Port   (Replaces: W11646878)			Immediately	$ 16.06
41	W11696402		Control, Electronic			Immediately	$ 281.34
42	W11693640		Wiring Harness, Main   (Replaces: W11609315)				$ 123.83
43	W11690634		Channel, Overflow (left)   (Replaces: W11684708)		Appelez-nous	-
44	W11698155		Nut, Tub   (Replaces: W11630670)				$ 12.98
45	W11693847		Kit, Side Cover Installation   (Replaces: W11673775)			Immediately	$ 119.46
46	W11696094		Button, Tub   (Replaces: W11656505)		Appelez-nous	-
12A	W11697222		Cover, Tub Corner (right)   (Replaces: W11316688)		Appelez-nous	-
19A	W11701674		Side Panel (right)   (Replaces: W11355598)				$ 148.94
29A	W11698157		Tub Mount, Third Level Rack (right)   (Replaces: W11386113)				$ 60.82
43A	W11690635		Channel, Overflow (right)   (Replaces: W11684709)		Appelez-nous	-
