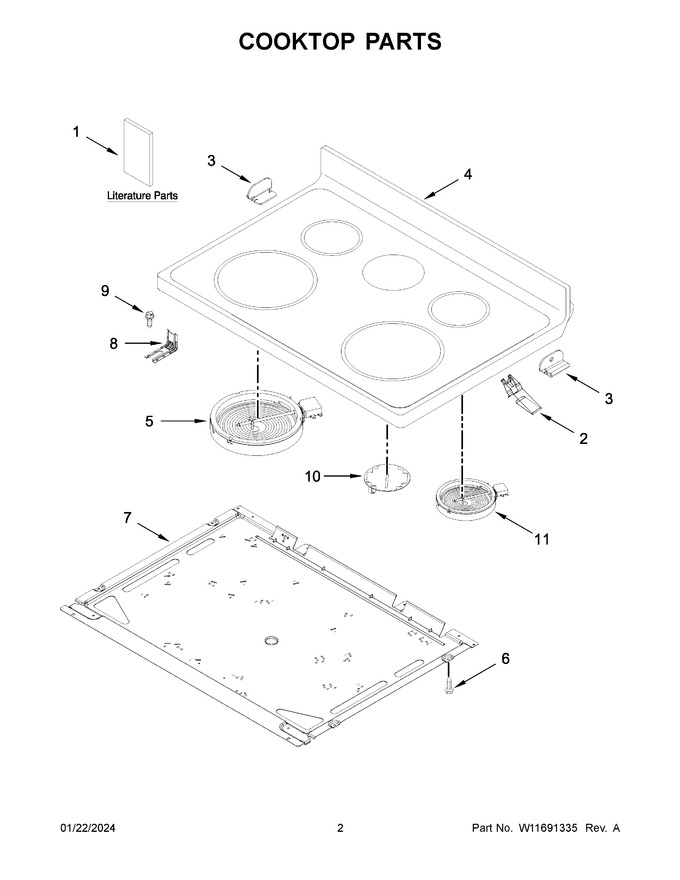

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11443025		Owners Manual		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 13.36
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W11183715		Cooktop (white)   (Replaces: W11034832)			Immediately	$ 608.29
5	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 308.37
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11706247		Element, Warm Zone (center)   (Replaces: W11668631)			Immediately	$ 120.55
11	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
1A	W11524742		Quick Start Guide		Appelez-nous	-
1B	W11523158		Tech Sheet		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
5A	W11517959		Element (3000 And 1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 132.01
NI	W11750758		Harness, Main   (Replaces: W11452630)		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	W11598759		Harness, Warm Zone		Appelez-nous	-
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 35.70
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 24.32
NI	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 77.70
