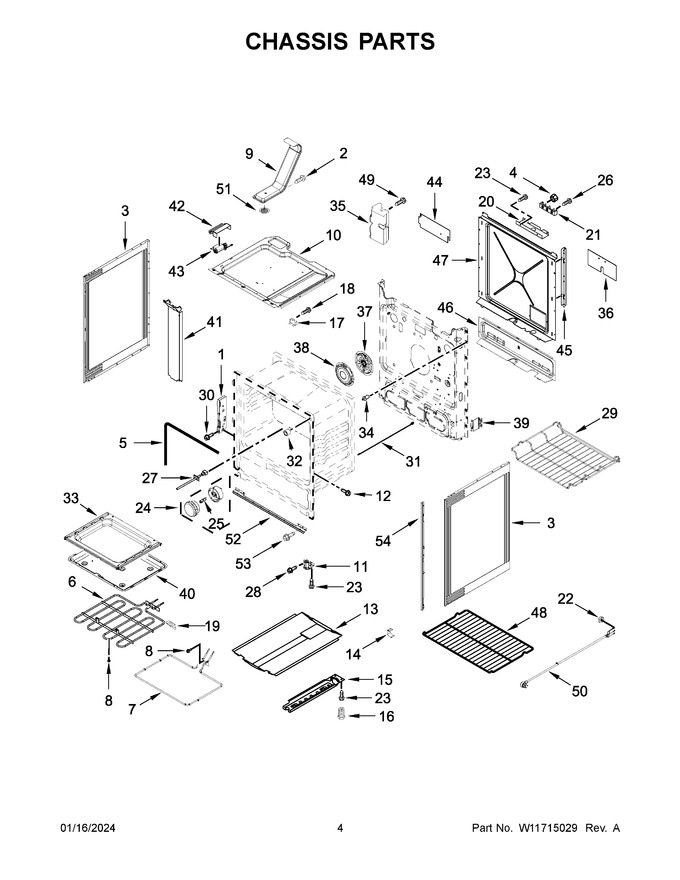

03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 2 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 160.65 | ||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 7.37 | ||||
| 5 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 78.98 | ||||
| 6 | W11321472 | Element, Broil (Replaces: W11095929) |
|
Immediately | $ 110.84 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 68.47 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 9 | W11122085 | Assembly, Flue |
|
$ 106.54 | |||||
| 10 | W10289168 | Box, Burner Si |
|
$ 184.41 | |||||
| 11 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 13 | W10541959 | Shield, Bake |
|
Immediately | $ 188.29 | ||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 15 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 19 | W10035900 | Support, Oven Bottom |
|
$ 12.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 27.12 | ||||
| 22 | 7103P02760 | Nut |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 24 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 36.68 | ||||
| 25 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 27 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 143.70 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | W11256463 | Rack, Oven (gull-wing) (Replaces: W10289145) |
|
Immediately | $ 119.25 | ||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 31 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 60.18 | ||||
| 32 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 33 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 170.62 | ||||
| 34 | W11620712 | Switch, Door (Replaces: W11511828) |
|
Immediately | $ 41.68 | ||||
| 35 | W11217187 | Counterweight (Replaces: W10914589) |
|
$ 30.56 | |||||
| 36 | W10655441 | Shield, Power Cord |
|
$ 129.92 | |||||
| 37 | W10903746 | Assembly, Convection (Replaces: W10756304) |
|
Immediately | $ 306.49 | ||||
| 38 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 69.90 | ||||
| 39 | W10273002 | Bracket, Oven Support |
|
$ 68.71 | |||||
| 40 | W11379357 | Bake Pan |
|
Immediately | $ 74.57 | ||||
| 41 | W10162255 | Duct, Cover |
|
$ 26.25 | |||||
| 42 | W10162254 | Duct, Cooling |
|
$ 121.01 | |||||
| 43 | W11620737 | Cooling Fan (Replaces: W11467246) |
|
Immediately | $ 208.82 | ||||
| 44 | W11117035 | Shield, Wire |
|
$ 79.34 | |||||
| 45 | W10162241 | Channel, Rear |
|
$ 33.80 | |||||
| 46 | W10162248 | Cover, Wire |
|
$ 133.37 | |||||
| 47 | W11379355 | Cover, Back |
|
Immediately | $ 119.43 | ||||
| 48 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 120.31 | ||||
| 49 | W11135756 | Screw (Replaces: W11034869) |
|
$ 13.26 | |||||
| 50 | W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 99.50 | ||||
| 51 | W11268772 | Screen, Vent (Replaces: W11092984) |
|
Immediately | $ 196.70 | ||||
| 52 | W11686853 | Bracket, Front Frame (Replaces: W11620269) |
|
- | |||||
| 53 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 54 | W11510561 | Barrier Rail, Rubber (front Left) |
|
$ 67.38 | |||||
| 15A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 3A | WPW10575396 | Panel, Side (white) (Replaces: W10575396) |
|
$ 182.19 | |||||
| 54A | W11510562 | Barrier Rail, Rubber (front Right) |
|
$ 67.38 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688363 | Insulation, Back (Replaces: W10162240) |
|
$ 109.97 | |||||
| NI | W11688567 | Insulation, Wrap (Replaces: W10289173) |
|
$ 115.21 | |||||
| NI | W11688730 | Insulation, Bottom (Replaces: W10575374) |
|
Immediately | $ 71.98 | ||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | 4820F01559 | Insulation, Strap |
|
- |
