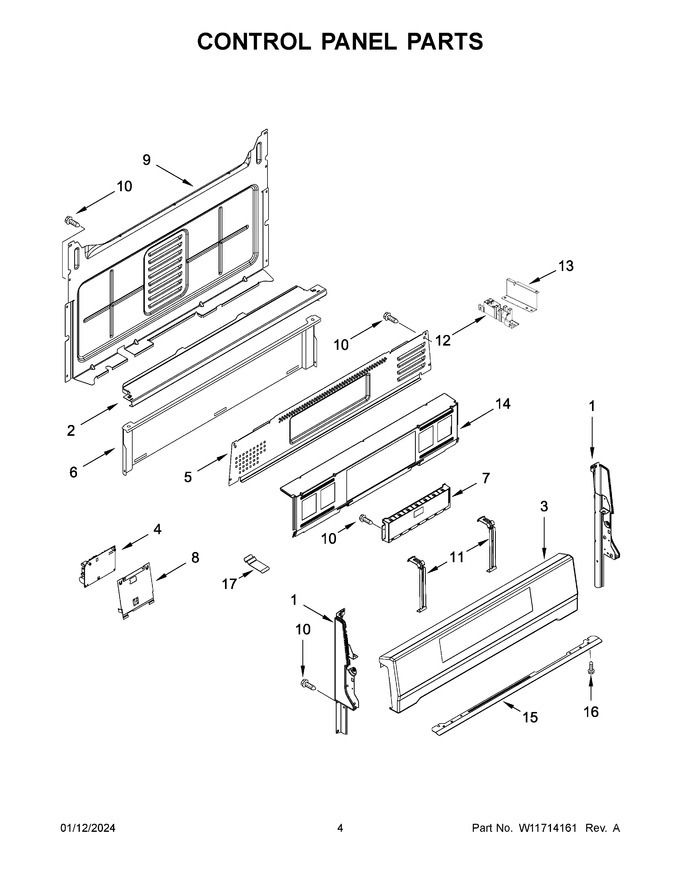

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 312.99 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W11175173 | Console (black Stainless) (Replaces: W10881624) |
|
$ 303.26 | |||||
| 4 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 327.62 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 7 | W11620580 | Control, Electronic (lcx) (black) (Replaces: W11520692) |
|
Immediately | $ 375.55 | ||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 68.78 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 11 | W10856361 | Bracket, Control |
|
- | |||||
| 12 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 13 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 14 | W10901802 | Panel, Backer |
|
$ 87.11 | |||||
| 15 | W11443964 | Bracket, Eye Brow (black) |
|
$ 200.19 | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 17 | WPW10551614 | Spreader, Clip-spring (Replaces: W10551614) |
|
$ 12.36 | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 64.49 |
