01 - Cover Sheet

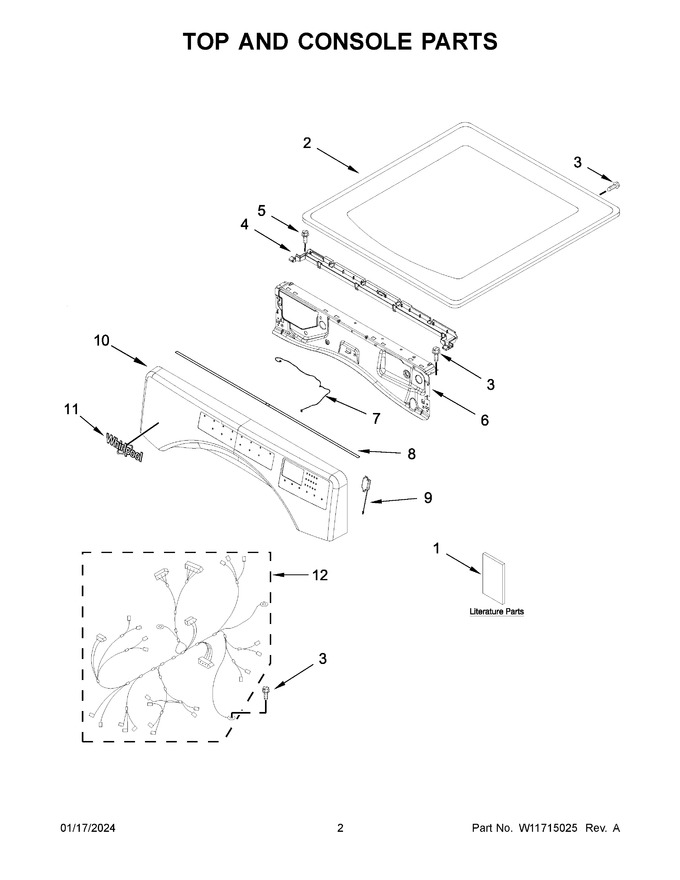

02 - Top And Console Parts


03 - Cabinet Parts


04 - Door Parts


05 - Bulkhead Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 291.54
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11310027		Channel, Water   (Replaces: W11255768)				$ 21.37
5	W11686675		Screw   (Replaces: 12990702)				$ 12.84
6	W11480682		Bracket, Console				$ 73.09
7	W11459337		Harness, User Interface   (Replaces: W11160620)				$ 30.50
8	W11231800		Seal		Appelez-nous	-
9	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
10	W11716417		Console Assembly (white)   (Replaces: W11557369)		Appelez-nous	-
11	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 78.53
12	W11157861		Harness, Main				$ 229.83
10A	W11716418		Console Assembly (chrome Shadow)   (Replaces: W11557370)				$ 487.89
1A	W11459719		Tech Sheet		Appelez-nous	-
1B	W11457204		Wiring Diagram		Appelez-nous	-
1C	W11550663		Quick Start Guide		Appelez-nous	-
2A	WPW10460919		Top (chrome Shadow)   (Replaces: W10460919)				$ 273.29
