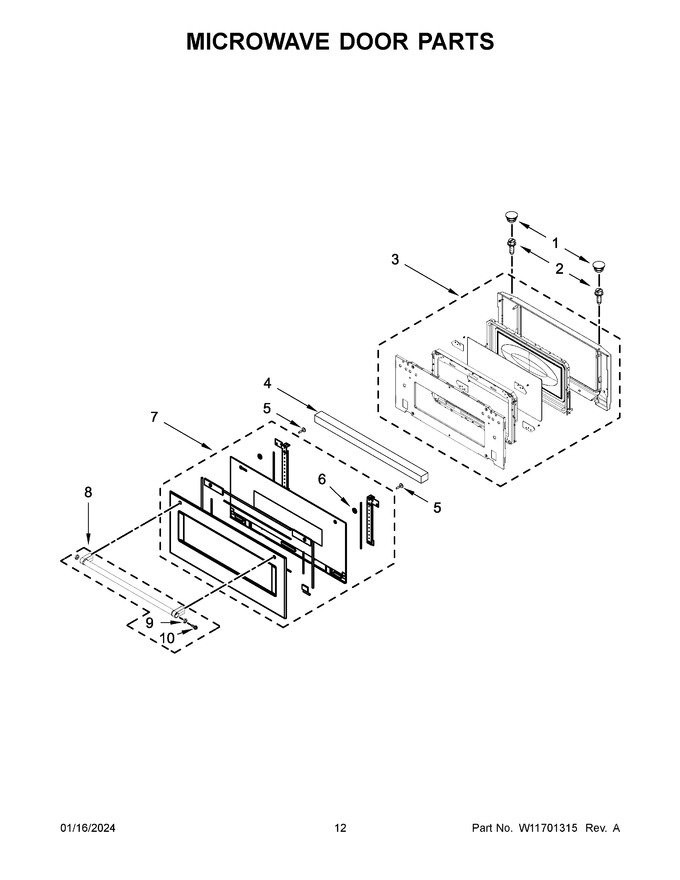

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 11.11 | |||||
| 2 | 7101P33860 | Screw |
|
- | |||||
| 3 | W11684570 | Inner Door Assembly (Replaces: W11639555) |
|
Immediately | $ 534.37 | ||||
| 4 | W10359769 | Foam, Door Handle |
|
$ 13.28 | |||||
| 5 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 13.28 | ||||
| 6 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 7 | W11600237 | Door Assembly (white) (Replaces: W11300492) |
|
$ 767.61 | |||||
| 8 | W11518518 | Handle Assembly (stainless) (Replaces: W11241572) |
|
$ 208.58 | |||||
| 9 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 20.83 | ||||
| 10 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.06 | ||||
| 7A | W11600216 | Door Assembly (stainless) (Replaces: W11300490) |
|
$ 787.72 | |||||
| 7B | W11600215 | Door Assembly (black Stainless) (Replaces: W11300496) |
|
$ 930.15 |
