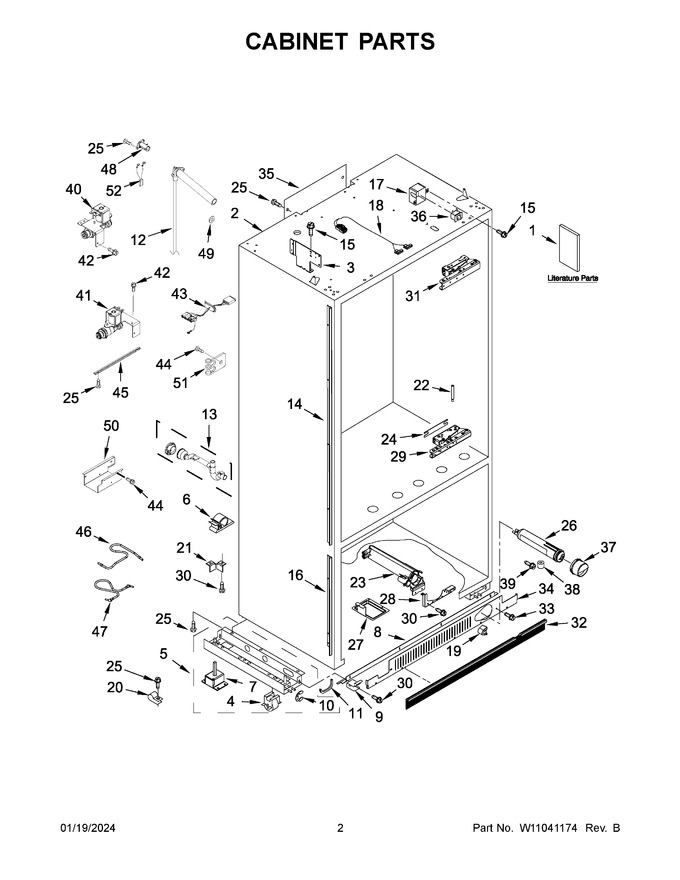

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Icemaker Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10728796		Use And Care Guide		Appelez-nous	-
2	ARI0E0595B5C30868CDEDF430A9DC24D80C		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	W11042558		Bracket, Grille Left Hand (grey)   (Replaces: W10714143)				$ 85.68
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
5	W10860229		Support, Leveler Assembly (left Hand)   (Replaces: W10279275)				$ 343.65
6	W10663352		Clip				$ 19.72
7	2005032		Leveler, Adjustable			Immediately	$ 180.06
8	W10634858		Trim, Top Grille (grey)				$ 225.69
9	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 38.93
10	2006841		Ring, Retainer				$ 83.39
11	2307584		Grommet, Crossover Tube				$ 21.06
12	2317847		Assembly, Water Inlet Tube				$ 77.72
13	W11291510		Assembly, Drain Tube   (Replaces: W10702350)				$ 69.27
14	W10687588		Trim, Side Left Hand (grey)		Appelez-nous	-
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
16	W10714137		Trim, Side Left Hand (grey)				$ 78.97
17	W10167387		Cover, Switch (left Hand)				$ 69.82
18	W10740131		Assembly, Top Switch Jumper Wire				$ 115.96
19	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.39
21	2006617		Bracket, Base Support (rear)		Appelez-nous	-
22	W10234202		Pin, Door Stop				$ 82.56
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
24	W10291661		Spacer, Hinge				$ 15.18
25	W11624204		Screw   (Replaces: 486194)				$ 13.25
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	2318189		Tray, Filter Drip				$ 133.86
28	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 72.30
29	W10828686		Hinge, Bottom (grey)   (Replaces: W10806865)				$ 413.45
30	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
31	W10691145		Hinge, Top Left Hand (grey)			Immediately	$ 425.23
32	WPW10188547		Skirt, Grille (black)   (Replaces: W10188547)			Immediately	$ 148.75
33	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 7.54
34	W11739145		Grille, Bottom   (Replaces: W10189196)			Immediately	$ 188.17
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W10606838		Switch, Light				$ 57.61
37	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 45.61
38	2005433		Spacer				$ 21.00
39	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 4.56
40	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 178.99
41	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 178.99
42	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
43	W10565837		Assembly, Water Valve Wire				$ 77.75
44	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
45	2320559		Support, Valve				$ 79.91
46	W10619899		Tube, Filter Inlet				$ 41.62
47	W10635851		Tube, Filter Outlet				$ 79.71
48	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 185.92
49	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
50	W10619291		Shield, Valve Electrical		Appelez-nous	-
51	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 10.73
52	W10482373		Assembly, Fill Tube Heater Wire				$ 112.59
14A	W10687582		Trim, Side Right Hand (grey)				$ 218.18
16A	W10687583		Trim, Side Right Hand (grey)				$ 145.52
17A	W10167341		Cover, Switch (right Hand)				$ 69.38
1A	W10712800		Energy Guide		Appelez-nous	-
1B	W10896706		Tech Sheet (english)		Appelez-nous	-
1C	W10896708		Tech Sheet (french)		Appelez-nous	-
1D	W10735232		Installation Instructions		Appelez-nous	-
1E	W10906504		Wiring Diagram		Appelez-nous	-
31A	W11700299		Hinge, Top Right Hand (grey)   (Replaces: W10691136)			Immediately	$ 457.16
3A	W11042559		Bracket, Grille Right Hand (grey)   (Replaces: W10714146)				$ 87.55
5A	W10860448		Support, Leveler Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W10744761		Template, Grill (wood Panel)				$ 73.73
NI	W11175806		Kit, Installation   (Replaces: W10613135)				$ 251.66
NI	W10234156		Installation Block				$ 15.09
NI	W10704869		Template, Door (wood Panel)				$ 159.32
