SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)

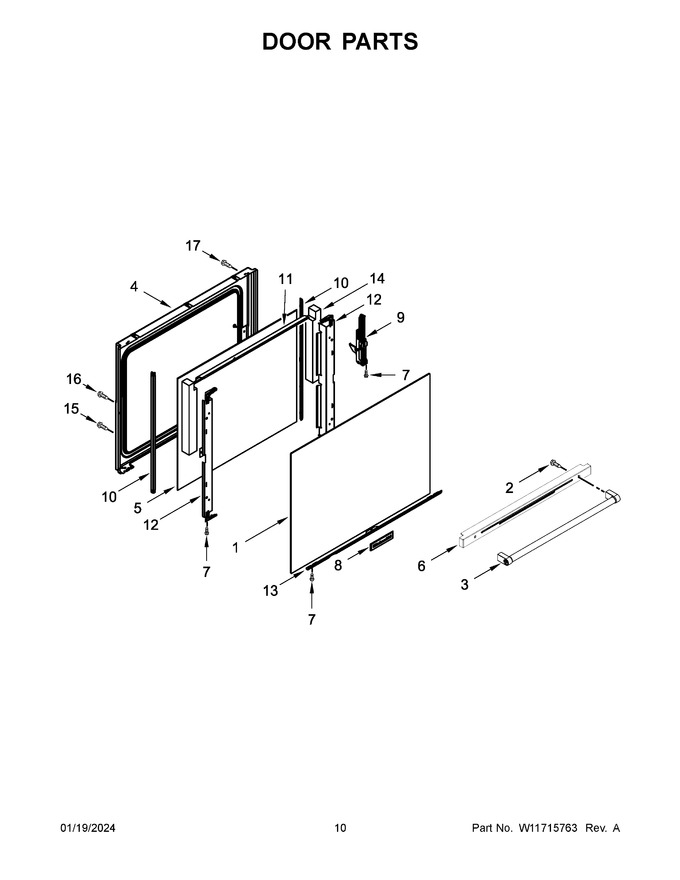

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10495962		Outer Door Glass Assembly (white)   (Replaces: W10495962)				$ 362.49
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
3	W11104399		Handle Assembly (stainless)   (Replaces: W10551000)				$ 213.73
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 298.36
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 267.26
6	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 112.82
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
8	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 68.58
9	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
10	W10334003		Side Trim, Door (white)			Immediately	$ 80.72
11	W10294853		Bracket, Glass Liner			Immediately	$ 213.34
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 120.38
13	WPW10333990		Trim, Bottom Door (white)   (Replaces: W10333990)			Immediately	$ 72.20
14	W11688565		Insulation, Door   (Replaces: W10772958)				$ 24.32
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
16	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
17	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.38

    View Diagram in Separate Window       Print Part List
