01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts

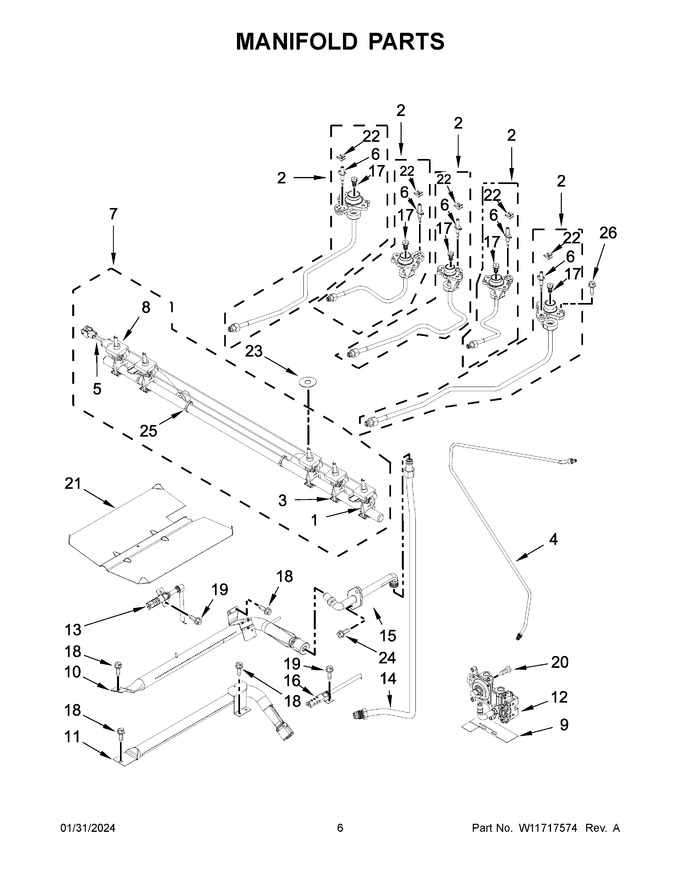

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577790 | Screw |
|
- | |||||
| 2 | W11186511 | Assembly, Orifice (19k) (left Front) |
|
Immediately | $ 108.00 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 20.48 | |||||
| 4 | W10432252 | Tube, Gas Supply |
|
$ 74.44 | |||||
| 5 | W11596366 | Harness, Spark Switch |
|
$ 91.59 | |||||
| 6 | W11675301 | Electrode, Burner (left Front) (Replaces: W10898387) |
|
Immediately | $ 31.78 | ||||
| 7 | W11602206 | Manifold Assembly |
|
Immediately | $ 287.19 | ||||
| 8 | W11620675 | Valve, Gas (right Front) (Replaces: W11511818) |
|
Immediately | $ 63.29 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 301.09 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W10702888 | Orifice (18k) (left Front) |
|
$ 52.50 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 22 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 23 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 18.27 | |||||
| 24 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 25 | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 | |||||
| 26 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 17A | W11677633 | Orifice (5k) (left Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 17B | W10849717 | Orifice (15k) (right Front) |
|
Immediately | $ 84.11 | ||||
| 17C | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 84.11 | |||||
| 17D | W10849715 | Orifice (8k) (center) |
|
- | |||||
| 2A | W11186508 | Orifice, Assembly (left Rear) |
|
$ 69.80 | |||||
| 2B | W11186524 | Assembly, Orifice (15k) (right Front) |
|
$ 73.94 | |||||
| 2C | W11186520 | Assembly, Orifice (9.2k) (right Rear) |
|
$ 74.24 | |||||
| 2D | W11186517 | Assembly, Orifice (8k) (center) |
|
$ 73.60 | |||||
| 6A | W11666003 | Electrode (left Rear) (Replaces: W10669525) |
|
$ 43.57 | |||||
| 6B | W11643126 | Electrode, Burner (right Front And Center) (Replaces: W10669524) |
|
Immediately | $ 47.89 | ||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 43.52 | |||||
| 8A | W11620676 | Valve, Gas (left Rear) (Replaces: W11511819) |
|
$ 63.29 | |||||
| 8B | W11620677 | Valve, Gas (center & Right Rear) (Replaces: W11511824) |
|
$ 63.29 | |||||
| 8C | W11593170 | Valve, Gas (dual) (left Front) |
|
$ 93.07 | |||||
| NI | W11216991 | Orifice, Lp Broil (Replaces: W10465078) |
|
Immediately | $ 83.75 | ||||
| NI | W11436985 | Lp Conversion Kit (Replaces: W11397194) |
|
Immediately | $ 41.90 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11087486 | Lp Conversion Kit (bake And Broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 | ||||
| NI | WPW10400494 | Orifice, Lp Bake (Replaces: W10400494) |
|
Immediately | $ 102.11 |
