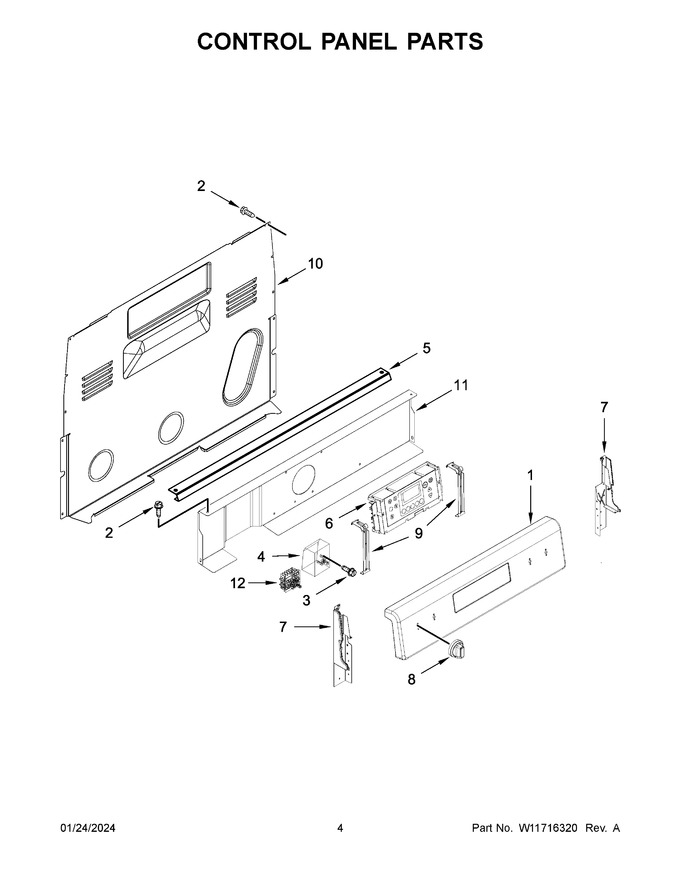

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11092070		Console (black)   (Replaces: W10885609)				$ 485.87
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
4	WP3149400		Switch, Infinite (orange) (right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
5	W10525121		Bracket, Console Mounting				$ 88.97
6	W11602268		Board, Control (black)   (Replaces: W11515115)			Immediately	$ 336.23
7	W11219664		Endcap (black (left))   (Replaces: W11130372)			Immediately	$ 138.45
8	W11092475		Knob (black)   (Replaces: W10892251)				$ 158.41
9	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10134247		Shield, Heat			Immediately	$ 322.94
12	WPW10434452		Switch, Infinite (dual) (left Rear)   (Replaces: W10434452)			Immediately	$ 126.76
1A	W11092069		Console (white)   (Replaces: W10885608)				$ 485.87
4A	5500-287		Switch, Infinite (left Front, Right Front)   (Replaces: 3148951)			Immediately	$ 49.03
6A	W11602269		Board, Control (white)   (Replaces: W11515114)				$ 336.45
7A	W11219665		Endcap (black (right))   (Replaces: W11130379)			Immediately	$ 40.65
7B	W11219365		Endpost, Console (white (left))   (Replaces: W11130371)				$ 38.21
7C	W11219370		Endpost, Console (white (right))   (Replaces: W11130378)				$ 54.75
8A	W11092479		Knob (white)   (Replaces: W10892250)			Immediately	$ 74.10
