Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11797352 Rack, Third Level   (Replaces: W11540175) In-Stock Immediately $ 138.39

2 W11568789 Wheel   (Replaces: W11048219) In-Stock Immediately $ 15.82


    View Diagram in Separate Window     Print Icon   Print Part List

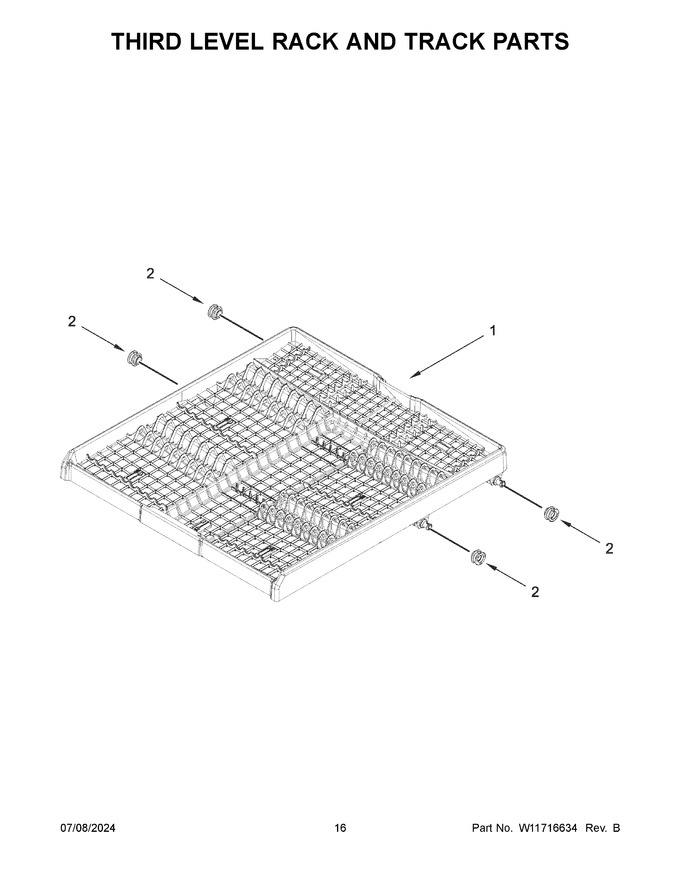

Diagram for MDPS6124RZ0
