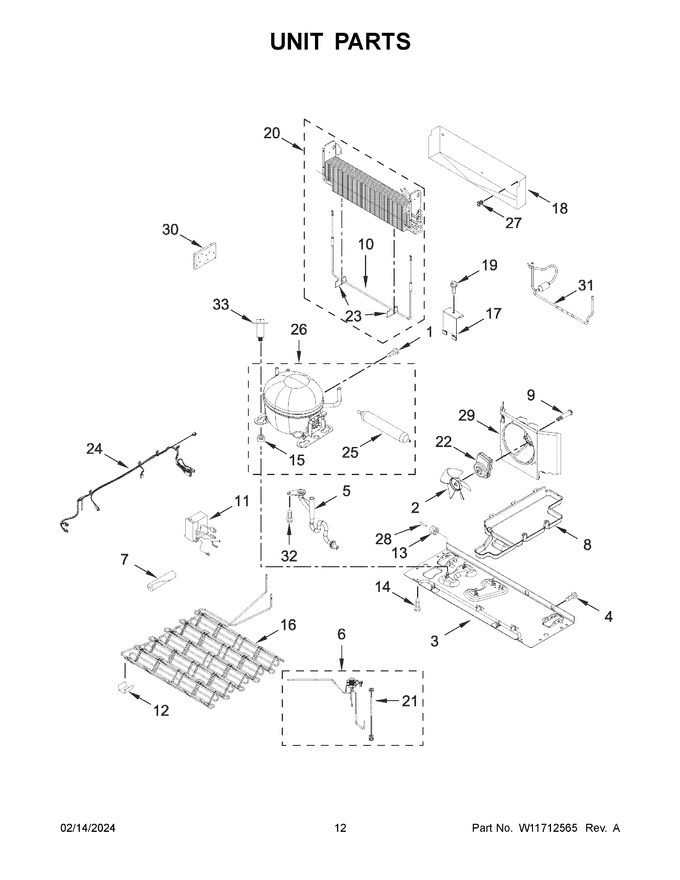

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 20.00 | |||||
| 2 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 87.56 | ||||
| 3 | W11411853 | Baseplate, Compressor |
|
- | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 5 | W11745620 | Extension, Drain (Replaces: W11541633) |
|
- | |||||
| 6 | W11575003 | Assembly, 3 Way Valve (also Order The Following Lokring Parts) (Replaces: W11401632) |
|
Immediately | $ 100.06 | ||||
| 7 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 19.19 | ||||
| 8 | W11225840 | Tray, Evaporator (Replaces: W10660727) |
|
Immediately | $ 142.44 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 11.95 | |||||
| 10 | W11575359 | Heater, Defrost (Replaces: W11553968) |
|
$ 107.73 | |||||
| 11 | W11578028 | Assembly, Inverter Box (Replaces: W11515300) |
|
Immediately | $ 352.44 | ||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 13 | 12477102 | Roller |
|
Immediately | $ 6.64 | ||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 16 | W11411956 | Condenser (also Order The Following Lokring Parts) |
|
$ 205.85 | |||||
| 17 | W10391376 | Bracket, Valve |
|
$ 31.53 | |||||
| 18 | W11408656 | Tray, Drip |
|
$ 41.02 | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 20 | W11598434 | Assembly, Evaporator And Heater (also Order The Following Lokring Parts) (Replaces: W11394387) |
|
$ 302.09 | |||||
| 21 | W11575713 | Assembly, Rkv Valve Jumper Wire (Replaces: W11516655) |
|
- | |||||
| 22 | W11127829 | Motor, Condenser Fan (Replaces: W11505535) |
|
Immediately | $ 203.92 | ||||
| 23 | W11380964 | Clip, Heater |
|
$ 16.68 | |||||
| 24 | W11679643 | Harness, Unit (includes Power Cord) (Replaces: W11306946) |
|
Immediately | $ 118.30 | ||||
| 25 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 26 | W11578205 | Compressor (also Order The Following Lokring Parts) (Replaces: W11515413) |
|
Immediately | $ 549.13 | ||||
| 27 | 10623002 | Clip, Evaporator |
|
$ 10.90 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 29 | WPW10406719 | Shroud (Replaces: W10406719) |
|
$ 74.02 | |||||
| 30 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 31 | W11578029 | Assembly, Suction Tube (Replaces: W11323441) |
|
$ 71.26 | |||||
| 32 | W10141518 | Screw |
|
$ 8.59 | |||||
| 33 | W11417341 | Screw |
|
$ 12.66 | |||||
| 16A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 26.03 | ||||
| 16B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 24.42 | ||||
| 20A | W11506620 | 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) |
|
Immediately | $ 28.89 | ||||
| 20B | W11506620 | 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) |
|
Immediately | $ 28.89 | ||||
| 25A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 26.03 | ||||
| 25B | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 19.80 | ||||
| 26A | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 24.42 | ||||
| 26B | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 23.30 | ||||
| 26C | W11506621 | 6 Nk Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 19.80 | ||||
| 26D | W11506635 | Tube, Charging (1/4 In W/ Schrader Valve) |
|
Immediately | $ 33.33 | ||||
| 6A | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 18.85 | ||||
| 6B | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 18.85 | ||||
| 6C | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 26.03 | ||||
| NI | ARI5CEE166A87037E457C58EA881531C0AA | Refrigerant Charge 53 Grams (r600a) |
|
- |
