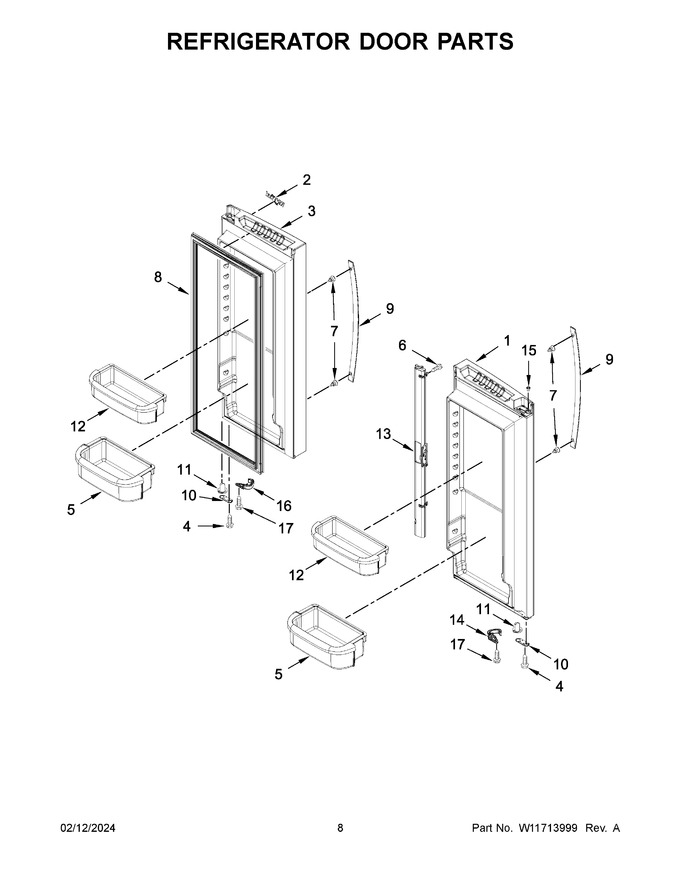

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661564 | Door, Left (black) (Replaces: W11622648) |
|
$ 966.48 | |||||
| 2 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 3 | 13107887BQ | Door, Right (black) (Replaces: 13107887B) |
|
$ 1,042.16 | |||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 223.74 | ||||
| 9 | W11123097 | Handle, Door (black) (Replaces: W11101974) |
|
$ 171.40 | |||||
| 10 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 13.28 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 81.29 | |||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 72.98 | ||||
| 13 | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
$ 220.83 | |||||
| 14 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 15.88 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 15.85 | |||||
| 17 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 |
