01 - Cover Sheet
02 - Cooktop Parts

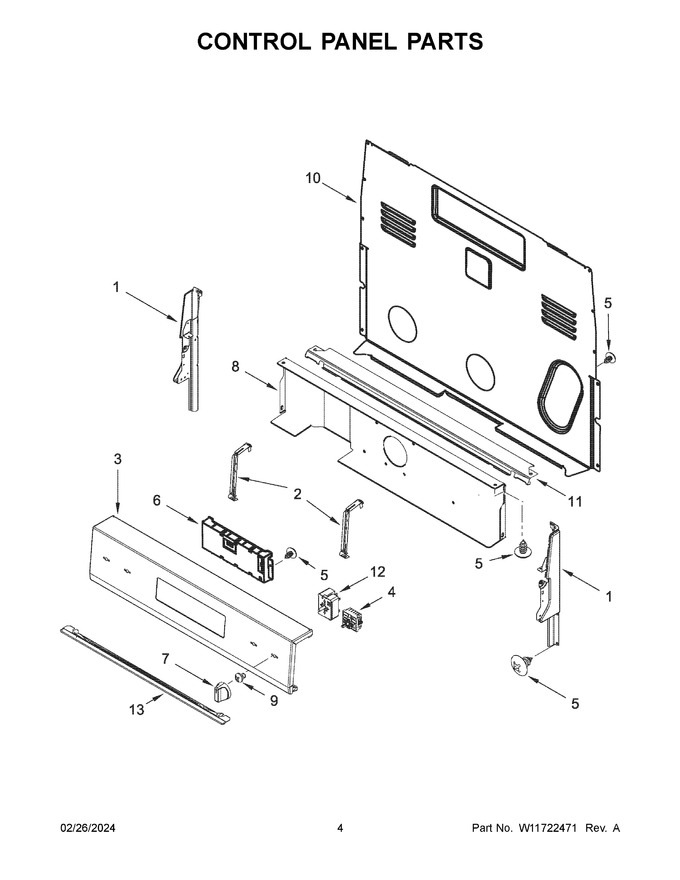

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 312.99 | |||||
| 2 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 27.33 | |||||
| 3 | W11707070 | Panel, Console (black) (Replaces: W11299264) |
|
$ 157.08 | |||||
| 4 | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 6 | W11707155 | Control, Electronic (lcx) (black) (Replaces: W11637089) |
|
Immediately | $ 403.51 | ||||
| 7 | W11707069 | Knob (black) (Replaces: W11331196) |
|
Immediately | $ 20.26 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 13 | W11443964 | Bracket, Eye Brow (black) |
|
$ 200.19 | |||||
| 13A | W11443963 | Bracket, Eye Brow (white) |
|
$ 200.97 | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 64.49 | |||||
| 1B | W11259041 | Endcap (white (left)) (Replaces: W11213291) |
|
$ 94.23 | |||||
| 1C | W11259700 | Endcap (white (right)) (Replaces: W11213293) |
|
$ 94.23 | |||||
| 3A | W11707068 | Panel, Console (white) (Replaces: W11299265) |
|
$ 95.18 | |||||
| 7A | W11707067 | Knob (white) (Replaces: W11331195) |
|
$ 20.68 |
