| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
LW10912118 |
|
Door, Refrigerator (includes Door Gasket) (white) (Replaces: W10912118) |
|
|
|
$ 867.22 |
|
|
| 2 |
WP2256101 |
 |
Door, Compartment (Replaces: 2256101) |
|
|
Immediately |
$ 89.42 |
|
|
| 3 |
W11174793 |
 |
Bin, Door (Replaces: W11034658) |
|
|
|
$ 161.02 |
|
|
| 4 |
2159074 |
 |
Gasket, Door (beige) (Replaces: W10912123) |
|
|
|
$ 325.70 |
|
|
| 5 |
W10210942A |
|
Handle (white) (Replaces: W10210942) |
|
|
|
$ 129.53 |
|
|
| 6 |
WP2182181 |
 |
Thimble (Replaces: 2200087) |
|
|
|
$ 8.15 |
|
|
| 7 |
WP2309941 |
 |
Trivet (Replaces: 2309941) |
|
|
Immediately |
$ 76.32 |
|
|
| 8 |
W11397972 |
|
Thimble, Cam (Replaces: W10900464) |
|
|
|
$ 13.79 |
|
|
| 9 |
WP489483 |
 |
Screw (Replaces: 489420) |
|
|
|
$ 11.41 |
|
|
| 10 |
W11557261 |
|
Bracket, Door Stop (Replaces: W11481760) |
|
|
Immediately |
$ 18.67 |
|
|
| 11 |
W11428492 |
|
Nameplate (badge) (Replaces: W11046244) |
|
|
|
$ 83.57 |
|
|
| 12 |
WPW10288153 |
 |
Screw (Replaces: W10288153) |
|
|
Immediately |
$ 9.65 |
|
|
| 13 |
WPW10142283 |
|
Screw (white) (Replaces: W10142283) |
|
|
|
$ 10.33 |
|
|
| 14 |
W11687672 |
|
Bumper, Door (white) (Replaces: W10407175) |
|
|
|
$ 14.93 |
|
|
| 11A |
W11318226 |
|
Nameplate (black) (Replaces: W11046243) |
|
|
|
$ 84.37 |
|
|
| 11B |
W11182143 |
|
Nameplate (stainless) (Replaces: W11046241) |
|
|
|
$ 80.27 |
|
|
| 13A |
WP98008545 |
 |
Screw (black) (Replaces: W10308487) |
|
|
|
$ 18.60 |
|
|
| 14A |
W10407187 |
|
Bumper, Door (black) |
|
|
|
$ 48.34 |
|
|
| 1A |
LW10912126 |
|
Door, Refrigerator (includes Door Gasket) (black) (Replaces: W10912126) |
|
|
|
$ 847.07 |
|
|
| 1B |
LW11156545 |
|
Door, Refrigerator (includes Door Gasket) (stainless) (Replaces: W11156545) |
|
Appelez-nous
|
- |
|
|
|
| 4A |
2159082 |
 |
Gasket, Door (black) (Replaces: W10912133) |
|
|
|
$ 332.49 |
|
|
| 5A |
W10210942A |
|
Handle (black) (Replaces: W10210943) |
|
|
|
$ 129.53 |
|
|
| 5B |
WPW10257120 |
|
Handle (grey) (Replaces: W10257120) |
|
|
|
$ 59.70 |
|
|

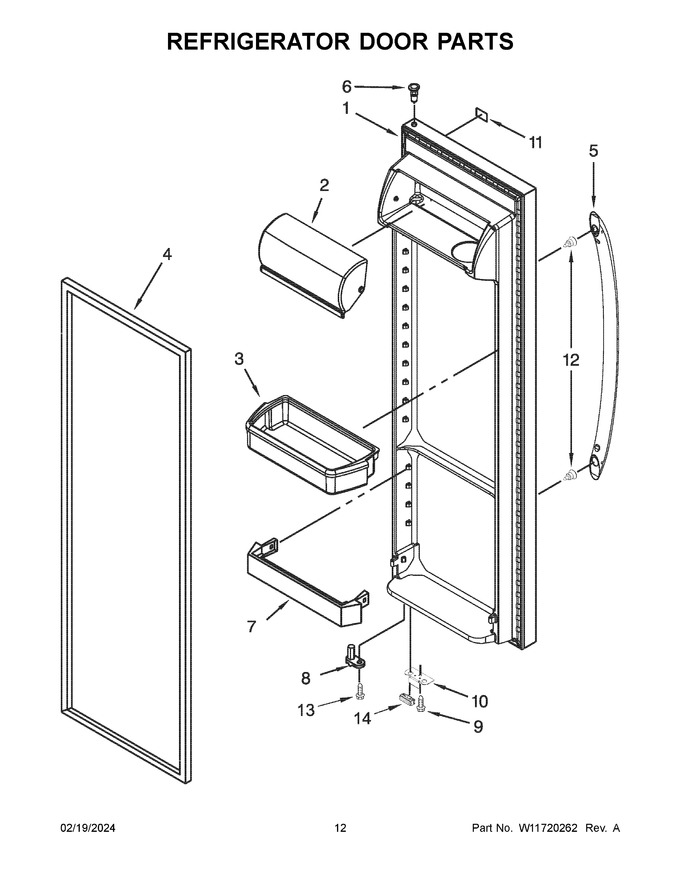

View Diagram in Separate Window
Print Part List
